MPI MicroPositioners

MPI offers a wide variety of backlash-free MicroPositioners to address every operational and measurement condition. These vary from small footprint to micrometer driven high resolution positioners for RF and mmW applications.



Features & Benefits

Contact Quality



Unified Z-direction, ergonomic operation, and magnetic bases with extreme strong holding power enable fine probe placement for high contact quality producing unsurpassed measurement results.

The MPI MicroPositioners are designed with universal probe interface compatible to all probe arms for ease of application specifics adaptations. Design varieties allow operators to choose MicroPositioners which fit their operational familiarity thus providing immediately proficiency.

Easy Upgrade



The MPI self-developed MicroPositioners are designed without compromise. The full carbon-steel structure enables stable contact over long periods of time and superior positioning accuracy.

Product – Application Matrix

MicroPostioner
Stage [mm]
Res. TPI
IV/CV
Coax
Low-level IV, Triax
IV/CV/PIV Kelvin
RF
Broadband mmW
High Power
HC / HV

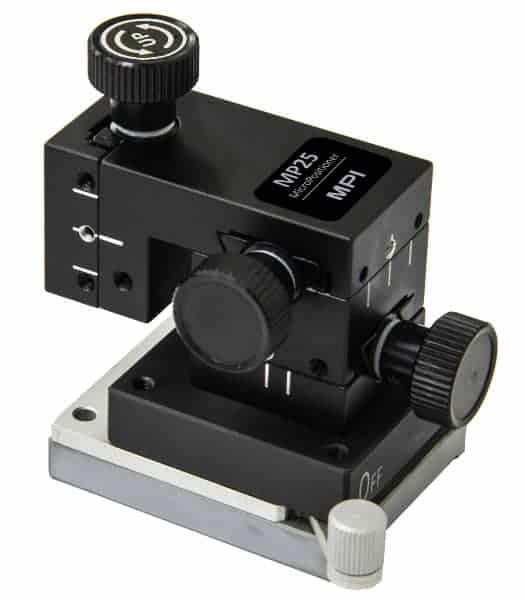

MP25
25
50
- / ○

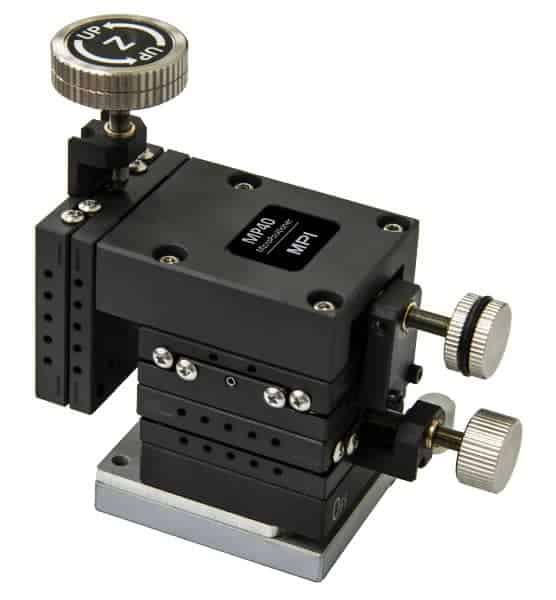

MP40
40
85
● / ○

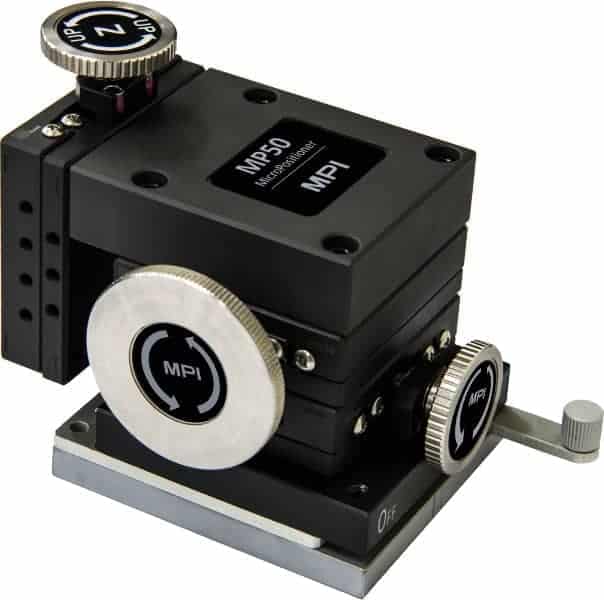

MP50
50
50 / 100
- / ○

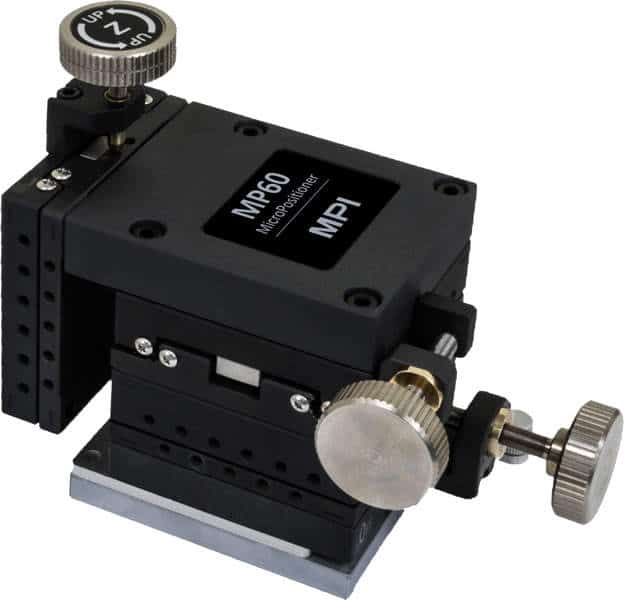

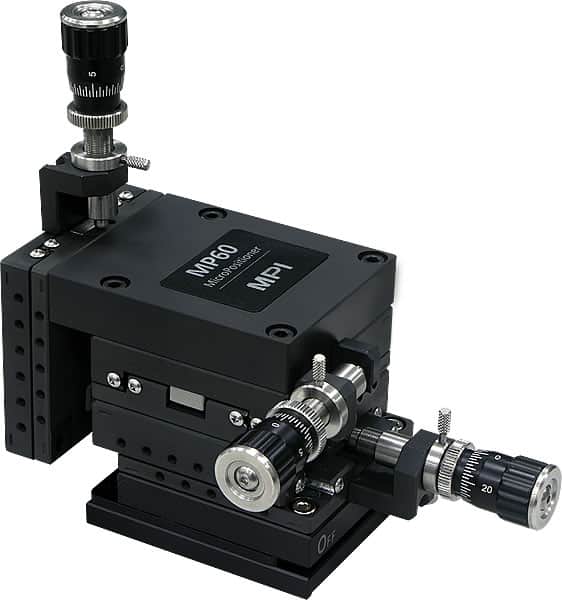

MP60
60
50 / 100
● / ○
MP60-MR
60
50
● / ○

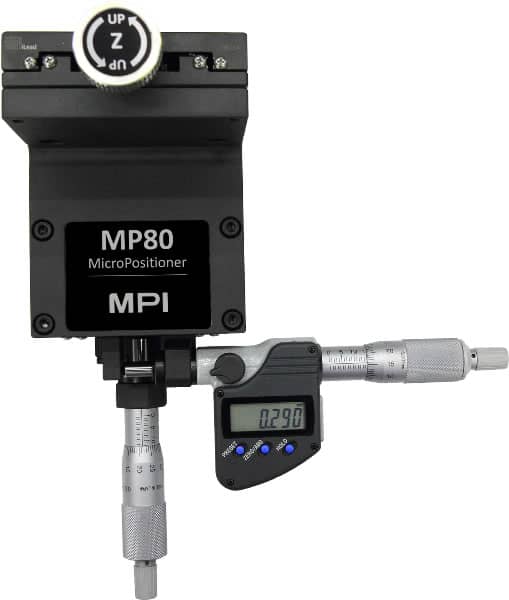

MP80
MP80-DX

80

50

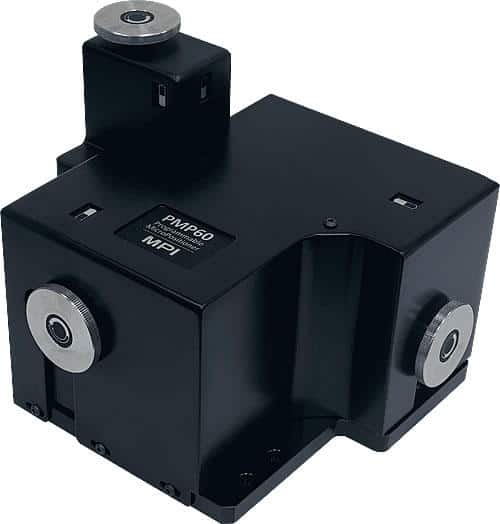

PMP60
60
N/A

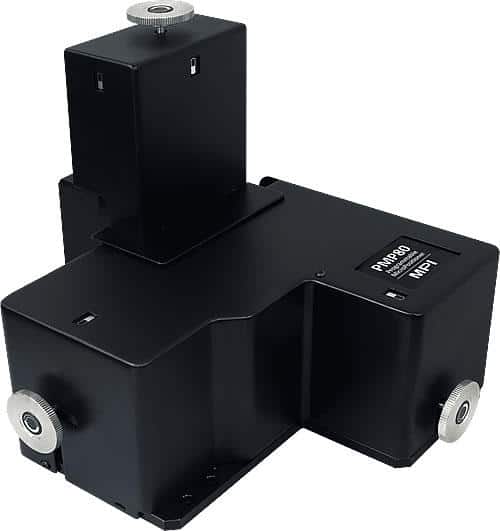

PMP80
80
N/A

● recommended ○ available
