MPI Advanced Technologies & Accessories
MPI become very fast the truly innovation leader in the Advanced Semiconductor Tests market. By offering wide range of system’s accessories and unique advanced technologies, such as NoiseShield™, PHC™, VCE™, mDrive™, MPI is offering variety of complete test solutions at highest value.

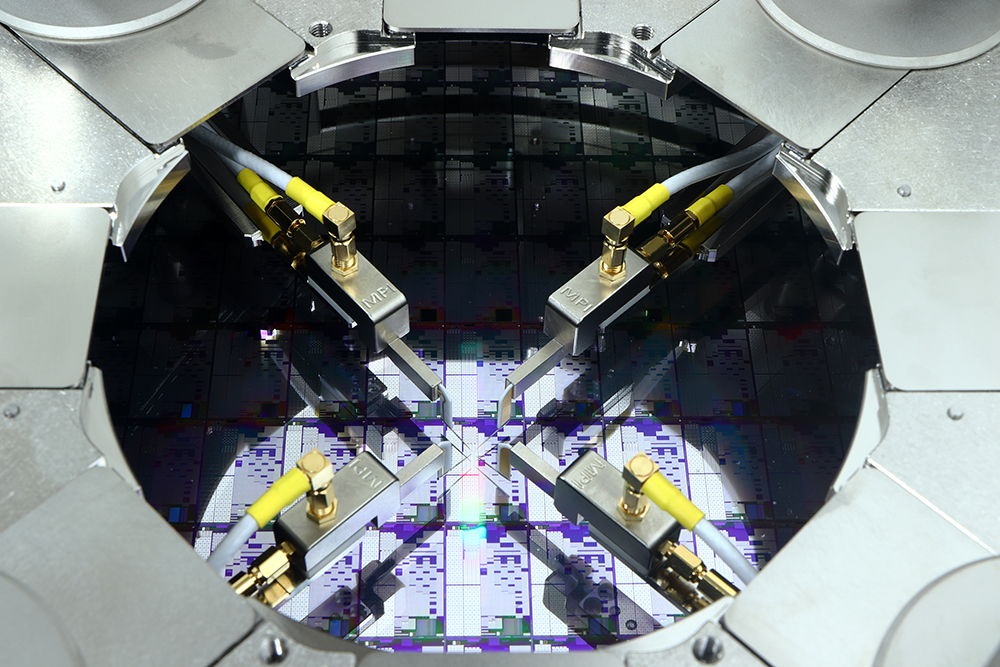

From 50, 150, 200 or 300 mm, ambient coaxial, triaxial, RF and high power Chucks up to an extended range from -60°C to +300°C temperature range.
MPI offers carefully selected or optional custom designed Optics to provide superior imaging for the best possible integration in different applications.

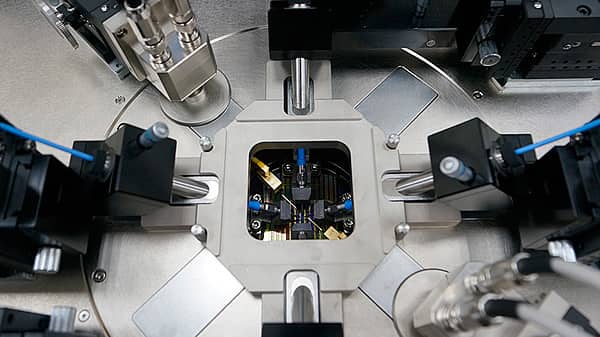

A wide slection of Systems Accessories completes the MPI portfolio.
Features & Benefits

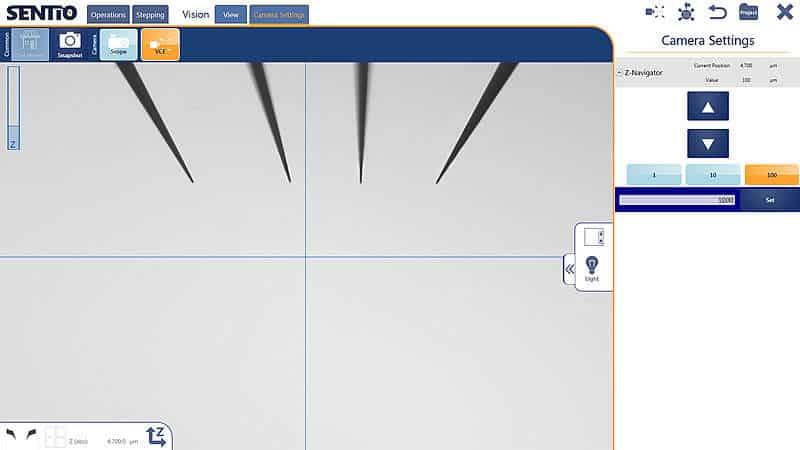

Vertical Control Environment VCE™

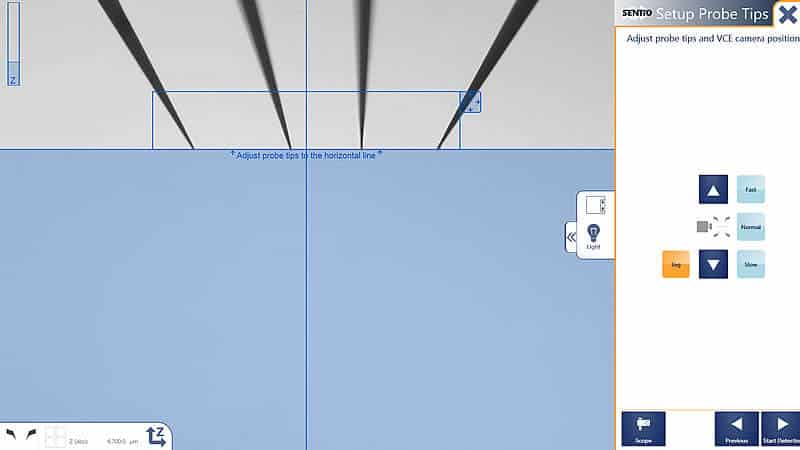

Using a side view of the probe tips – the VCE™
easy wizard driven procedure, provides automated contact definition by working with DC or with RF MicroPositioner or even with probe cards. The automated tip height detection, saves significant time during initial contact setting and protects probes crashes and pad damages.

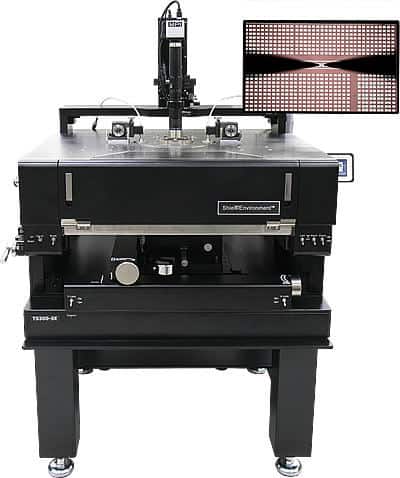

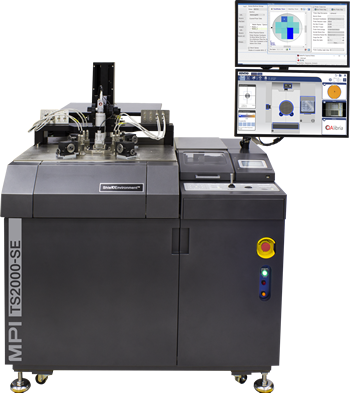

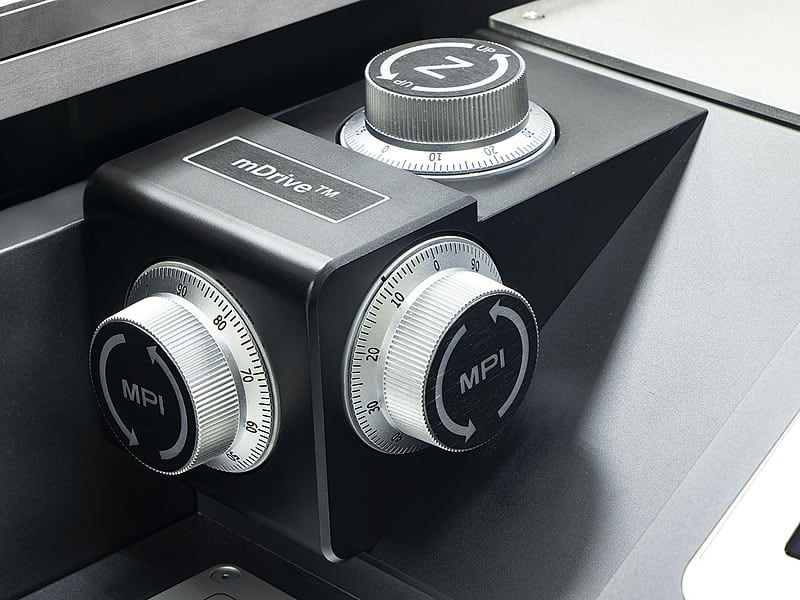

In addition to the standard joystick control, mDrive™ provides a truly intuitive, manual, one or two hands operation of all existing programmable stages, such as chuck, scope or MicroPositioners. X- and Y-axis fine control is available for the selected stage, where Z safety function requires additional enabling. The feature is available as an option for TS2000-SE, TS2000-IFE, TS3000, TS3000-SE, TS3500, and TS3500-SE probe systems and is field upgradable for all those as well.

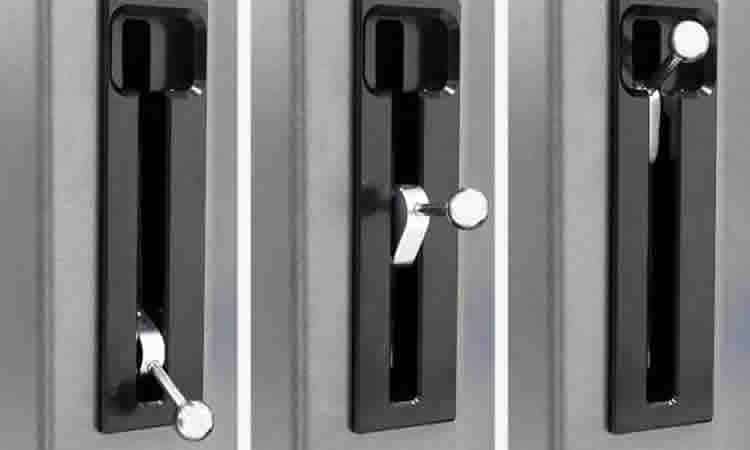

Probe Hover Control PHC™
MPI was pioneering with Probe Hover Control PHC™ to provide new revolutionary manual control of the probe contact setting.
The separation distance between the probes and the pads can accurately control down to one micron accuracy by having permanent, direct feedback of actual lift distance withing SENTIO

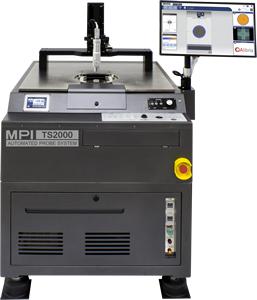

PHC™ is a standard feature for TS2000-IFE, TS3000, TS3000-SE, TS3500, and TS3500-SE, however available as an option for TS2000 Series and TS2000-SE, too, and is uniquely field upgradable for all those as well.

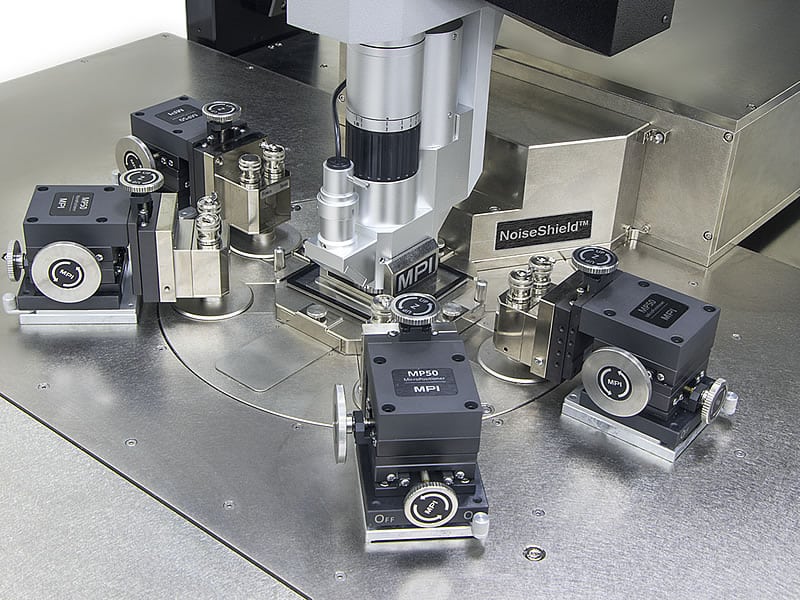

MPI’s NoiseShield™ is developed exclusively to deliver high customer value by reducing cost of tests. It offers in combination with MPI ShielDEnvironment™ an unsurpassed EMI-Shielding not only for the DUT but even for the measurement instrument (such as pre-amplifier unit), and for all cables and connectors.
For more please see here.*
