MPI Manual Probe Systems

Standard Open Systems



MPI  TS150, TS200 & TS300  manual probe systems are open, easy to use and cost effective yet highly accurate. These systems are designed for precision analysis of substrates and wafers up to 150, 200 and 300mm.

They may be configured to support a wide variety of applications such as  Failure Analysis Design Validation/IC Engineering Wafer Level Reliability High Power Device Characterization MEMS  and  Signal Integrity  as well.

High Power Systems



The MPI TS150-HP and TS200-HP probe systems are specifically designed for on-wafer high power device characterization testing up to 10 kV and 600 A. Dedicated chuck designs, connectors and cables are engineered to achieve low contact resistance measurements of power semiconductor under wide range of temperatures.

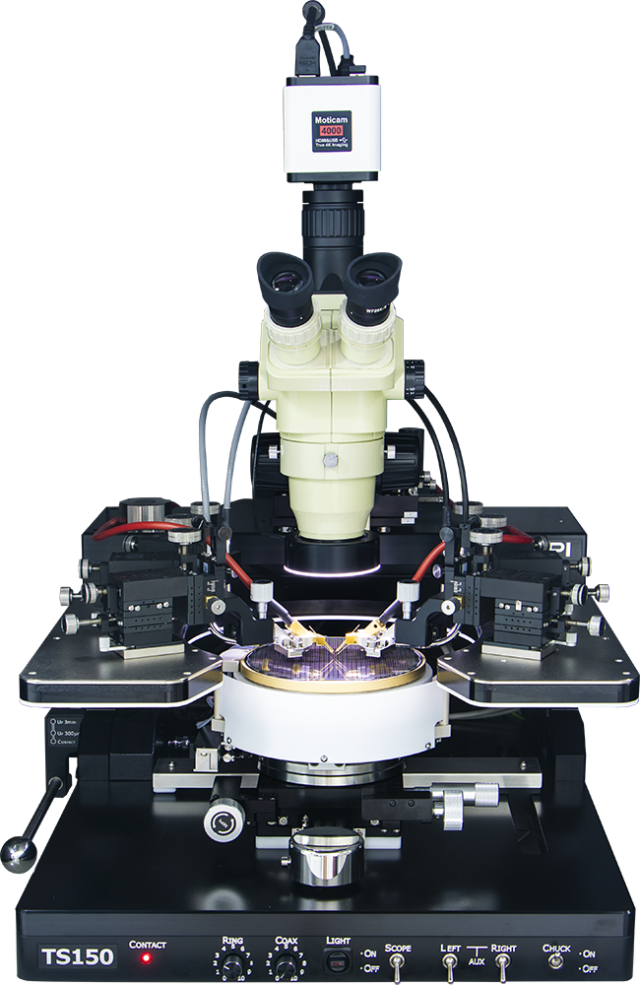

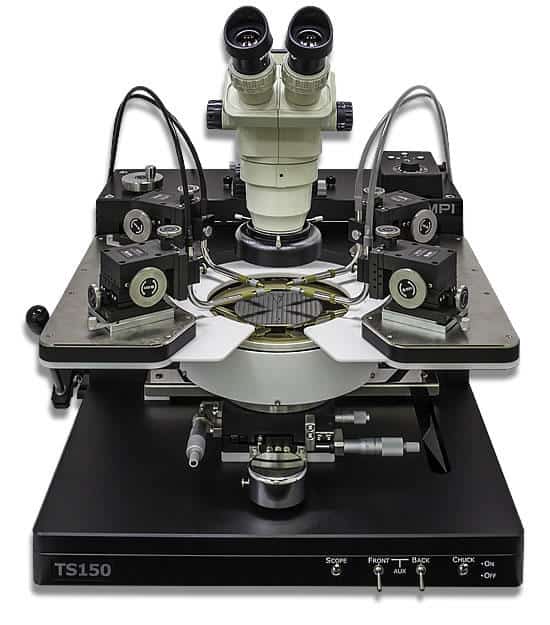

TS150-HP



Manual Wafer Probe Station

TS200-HP



High Power Wafer Probe Station

Dedicated Systems for mmW and THz Application



MPI TS150–THZ engineering probe system is a dedicated, cost effective, manual probe system designed especially for precision analysis of substrates and 150 mm wafers in sub THz range.  The system is extremely stable, with a large probe platen, and a low-profile design. Each of these essential elements are required to support a wide variety of RF and mmW applications such as broadband up to 220 GHz, banded solutions up to 1.1THz, load-pull and RF noise.

TS150-AIT and TS200-THZ probe system expand MPI one-of-a-kind system solutions for emerging THz applications by adding active impedance tuner integrations on the same probe stations. These two systems are the industry’s first explicitly designed 150 mm and 200 mm probe systems providing accurate tests for the combination of requirements for mm-wave, THz, and automated impedance tuner applications with best possible measurement directivity.

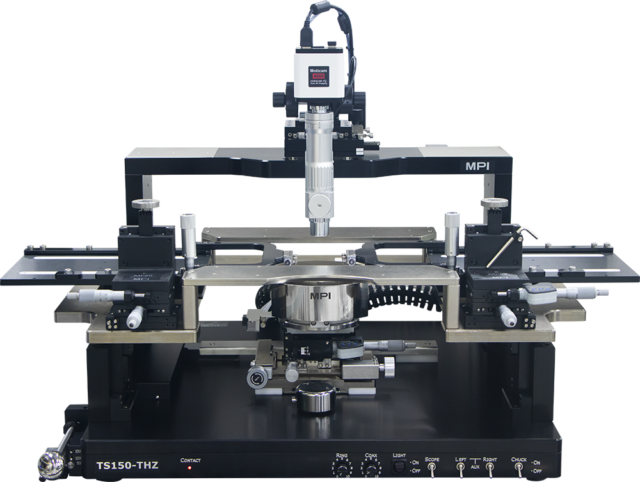

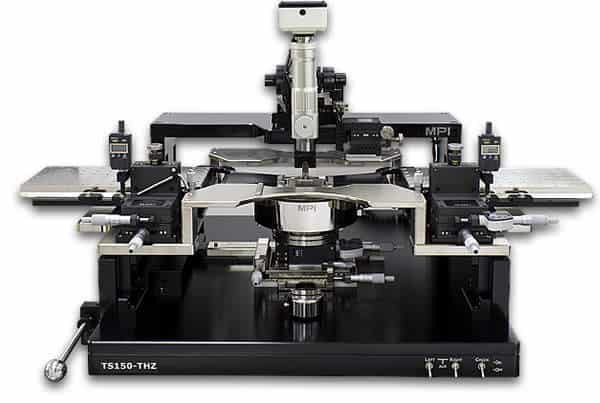

TS150-THZ



150mm Wafer Probing Station

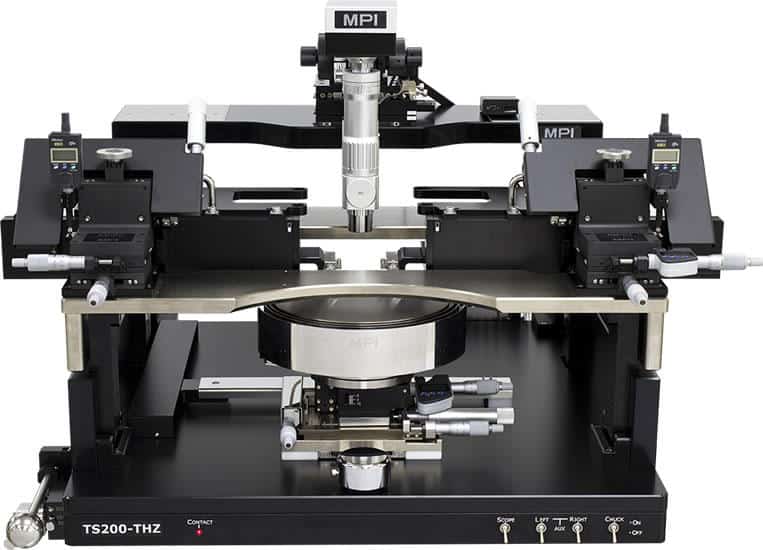

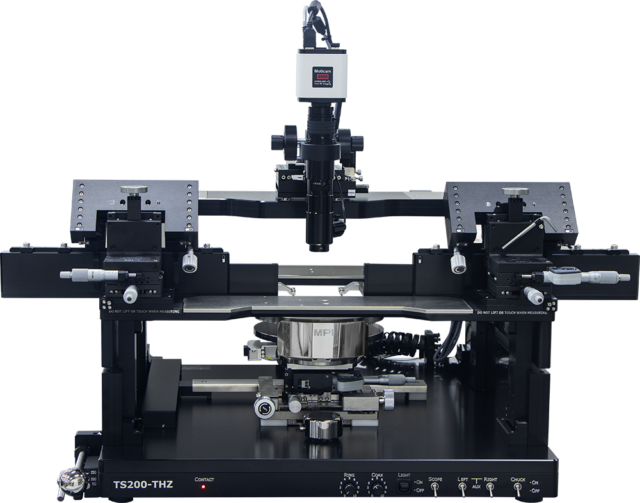

TS200-THZ



200mm Wafer Probing Station

Shielded Systems



The MPI TS200-SE and TS300-SE probe system incorporate the ShielDEnvironment™ providing optimal EMI shielding which allows ultra-low noise device on-wafer measurements mainly for Device Characterization and Modeling applications.

The modular design concept of all MPI manual probe systems allows a unique upgrade path towards reduced cost of ownership.

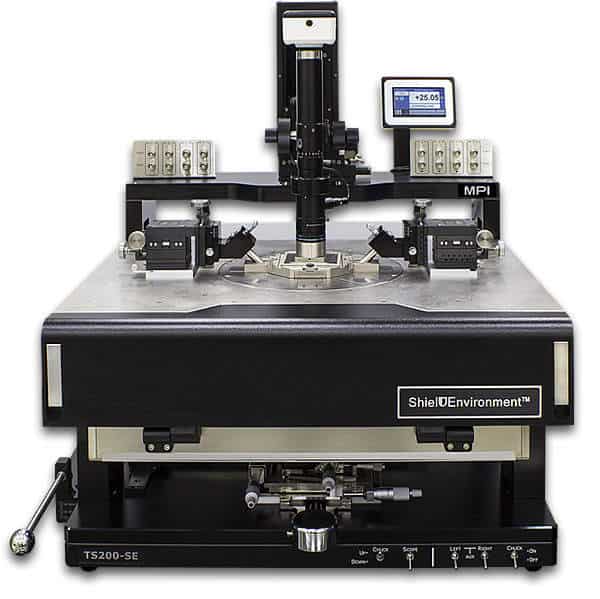

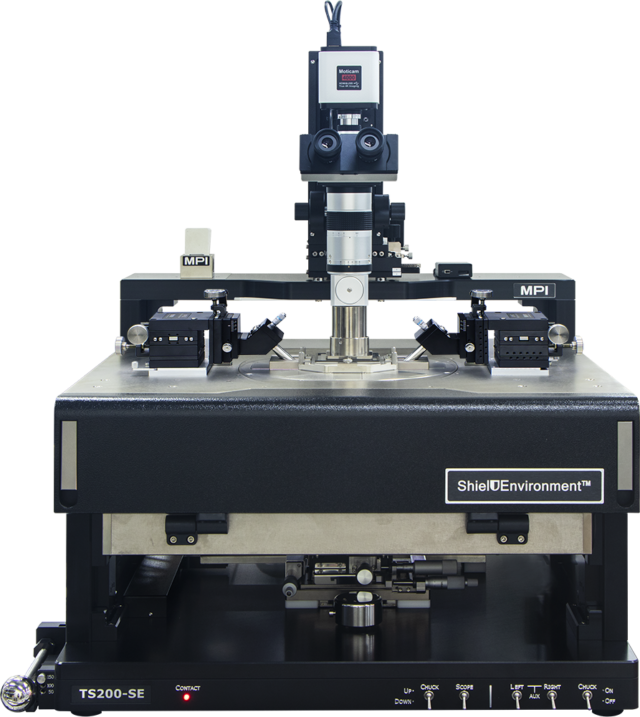

TS200-SE





200mm Wafer Probing Station with Shield Environment - low noise On-wafer measurements

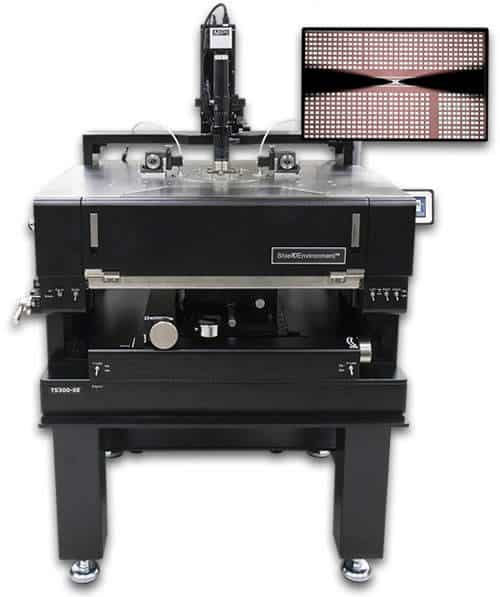

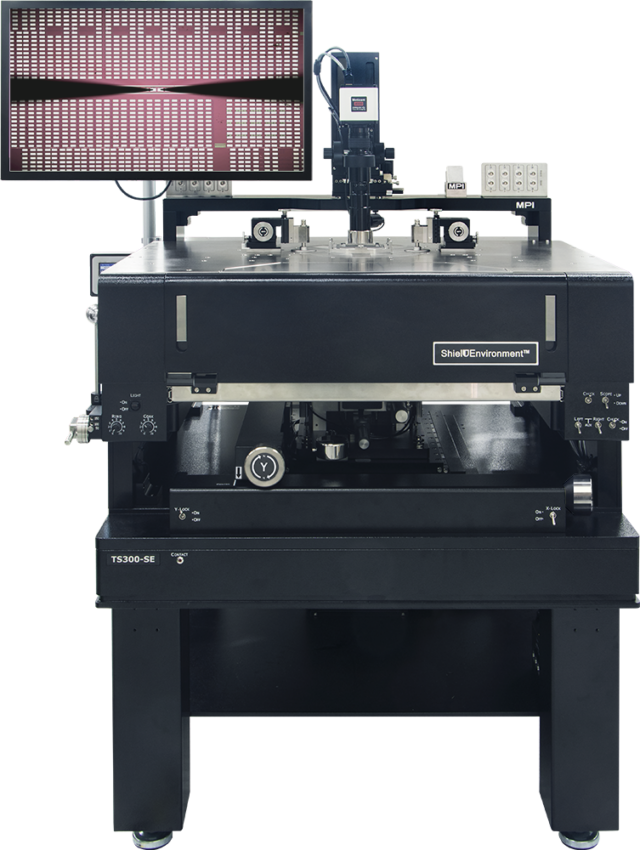

TS300-SE



300mm Wafer Probing Station
