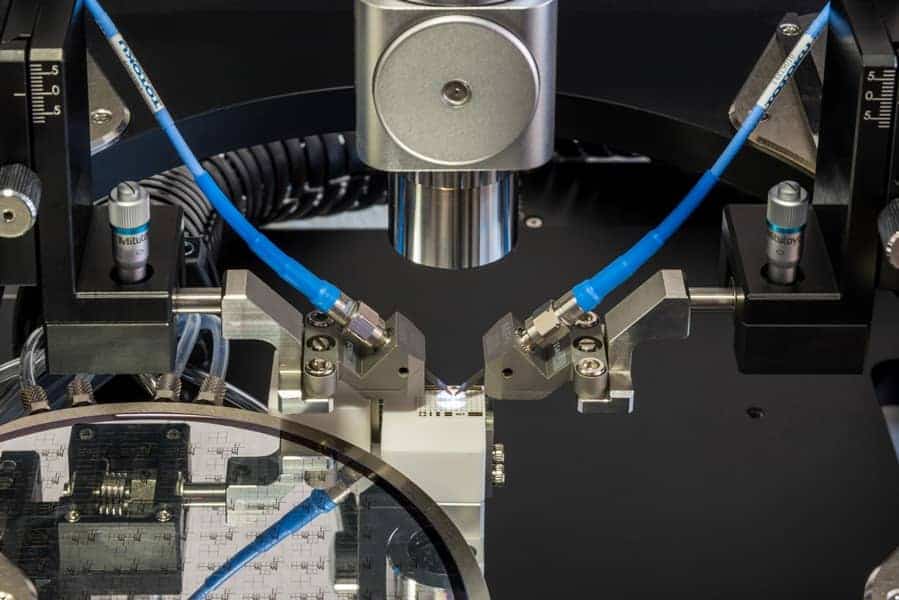

TITAN™ Probe Technologies

Features & Benefits

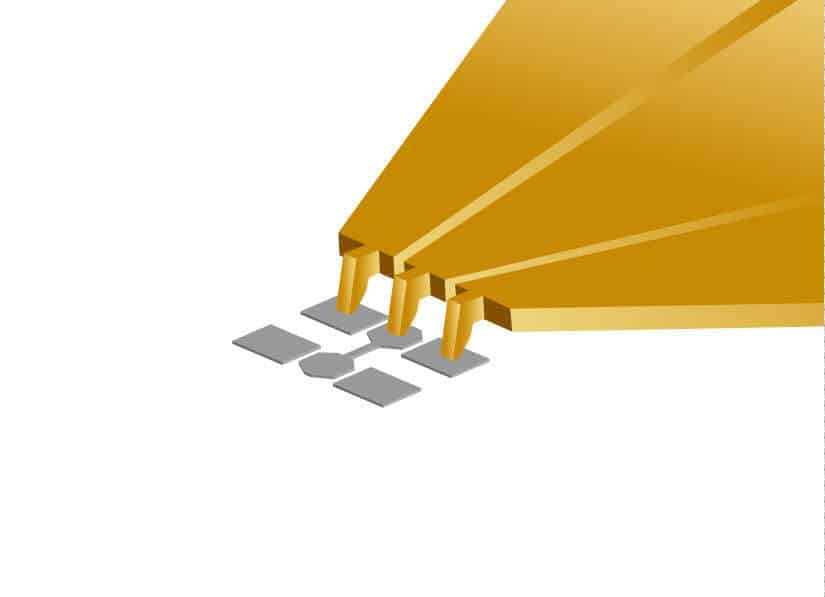

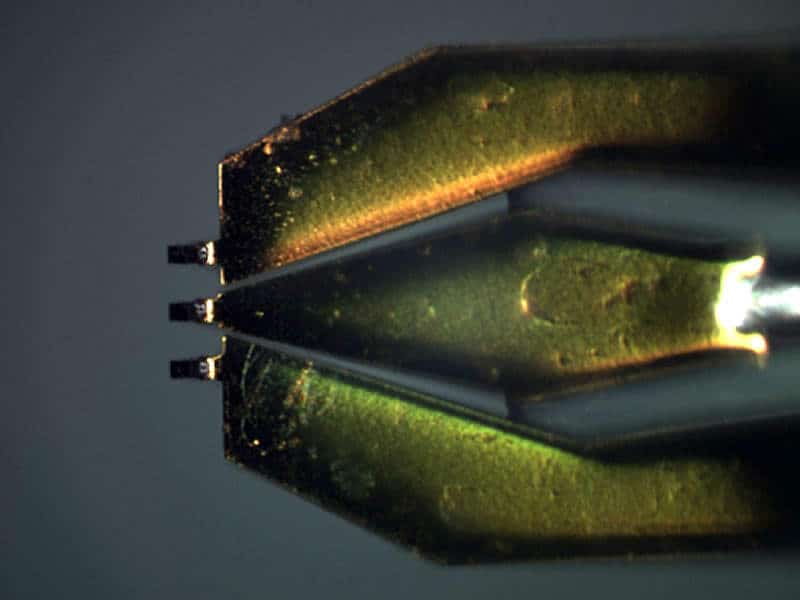

MEMS Tips

Precisely manufactured, the MPI TITAN™ Probes incorporate perfectly-matched 50 Ω MEMS contact tips. They ensure unmatched calibration and measurement results over a widest frequency range thanks to superior probe electrical characteristics (minimal insertion loss and crosstalk as well as high return loss).

MPI TITAN™ Probes MEMS contact tips

Unique Contact Structure

Unlike any other tips on the market, MPI TITAN™ RF probes deliver an excellent and real time visibility of the tip contacts due to the unique protrusion tip design. For the first time, highly accurate positioning of the RF probe on calibration standards or DUT pads became possible even for unexperienced operators and without using probe alignment marks.

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

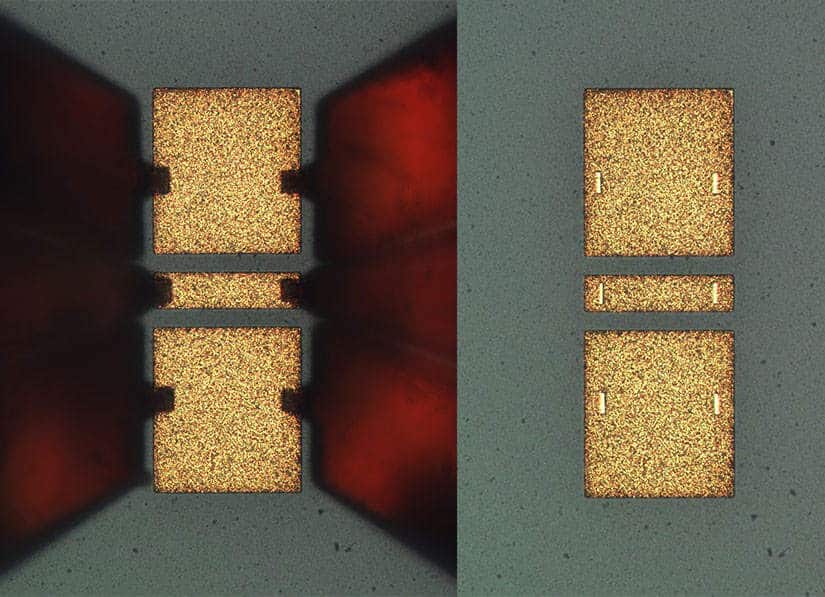

Contact Quality

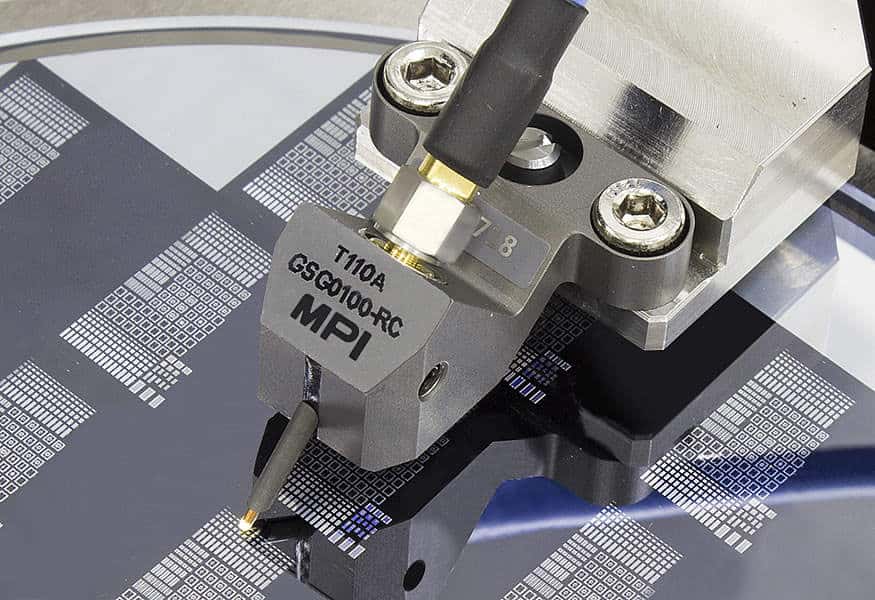

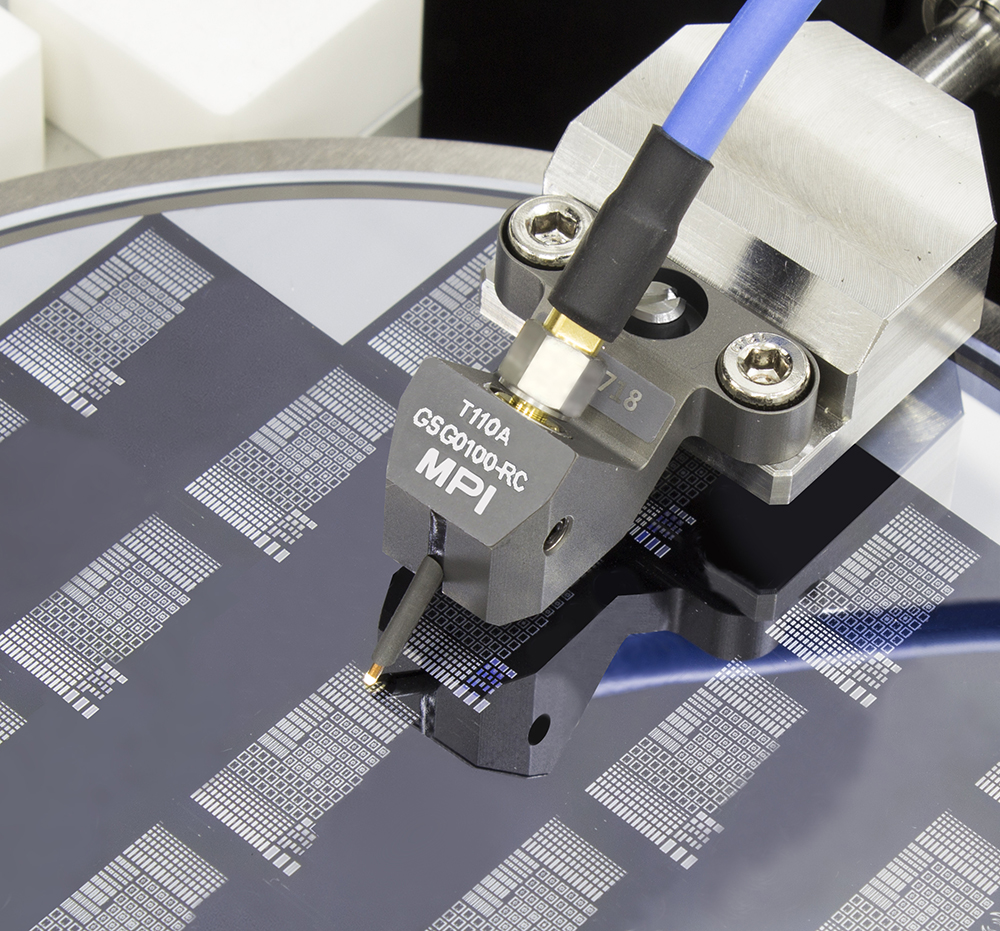

MPI Corporation expands the family of the RF TITAN Probe by introducing the TITAN-RC Probe. The new probe model features the contact tip width reduced by 33% down to 20 μm. Fully aligned with the industry trend towards further reduction of the pad size for RF devices and ICs, the TITAN-RC probe significantly reduces cost of test for next generation commercial RF and mm-wave silicon devices and ICs. It enables accurate, and reproducible measurement results obtained for Si devices with Al pad metallisation as small as 30 x 35 μm. TITAN-RC probes are available in GSG tips configuration with probe pitch from 50 μm to 150 μm.

MPI TITAN™ Probes - Reduced Contact Probe

Outstanding Lifetime

One of the strongest features of TITAN™ Probe technology is its uniform wear-out: after hundreds of thousands probe cycles, the length of the probe tip naturally shrinks. The electrical characteristics, however, remain unchanged due to the unique probe design. Thus, the life time of TITAN™ Probes outperforms the life time of comparable probe technologies.

Last but not least, TITAN™ Probes stand out thanks to a truly affordable price.

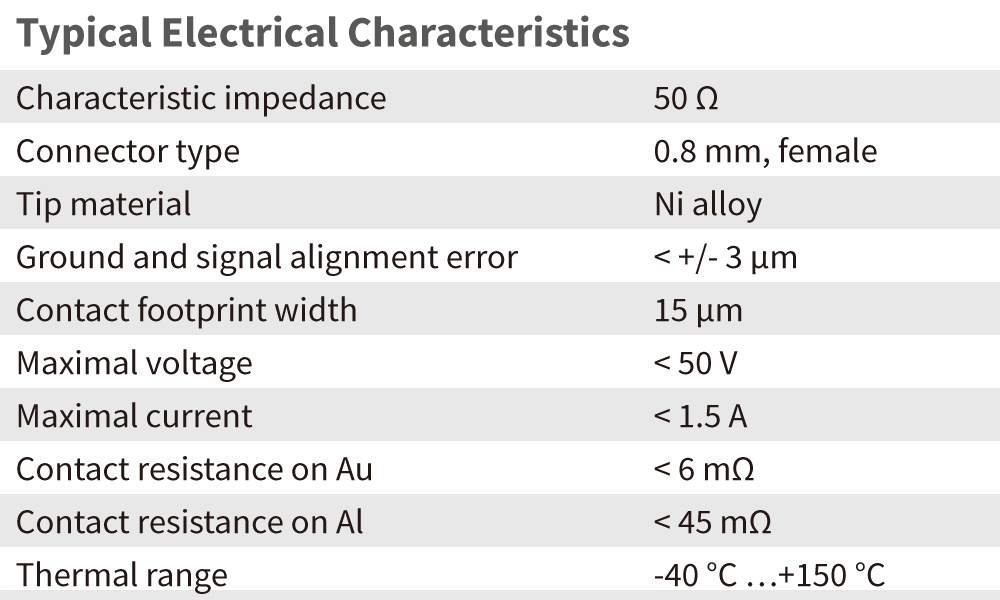

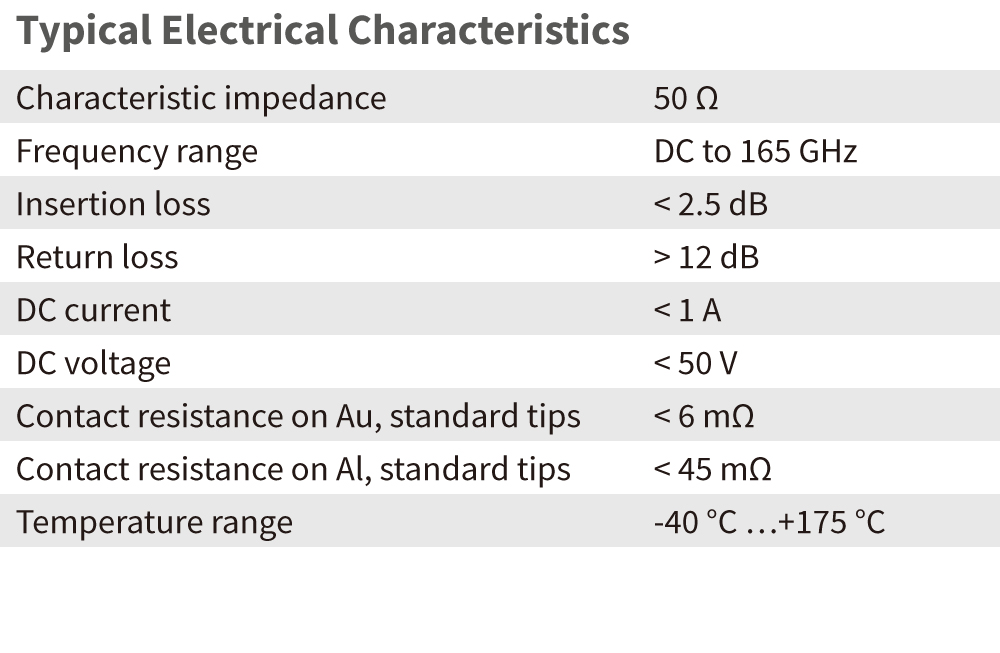

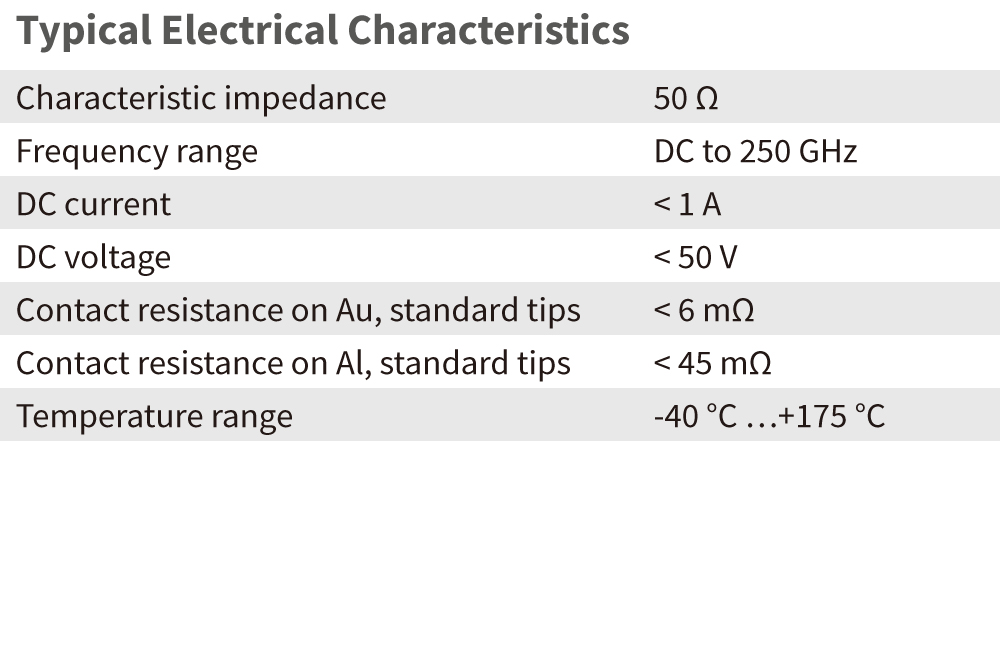

Probe Characteristics

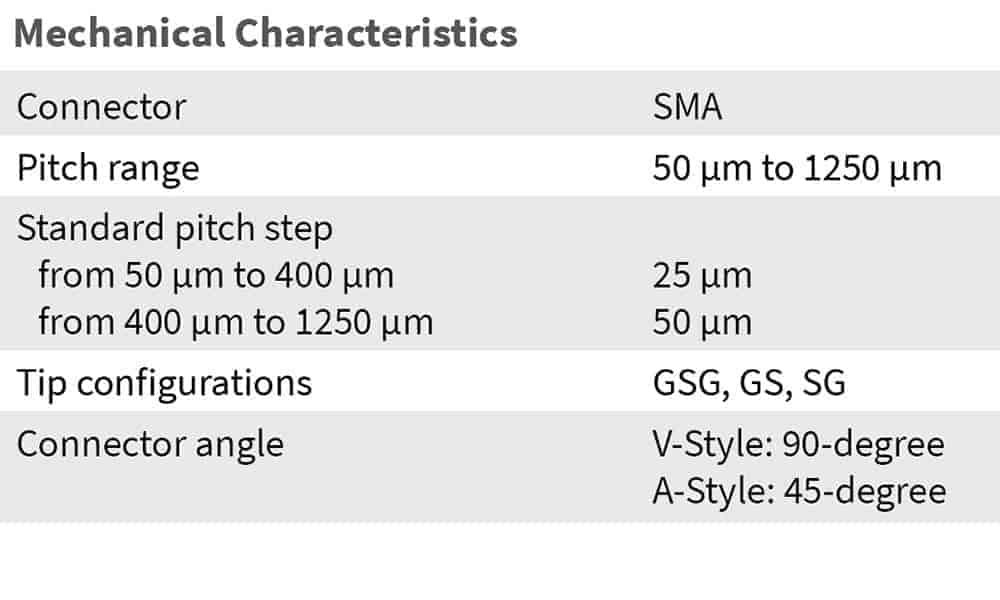

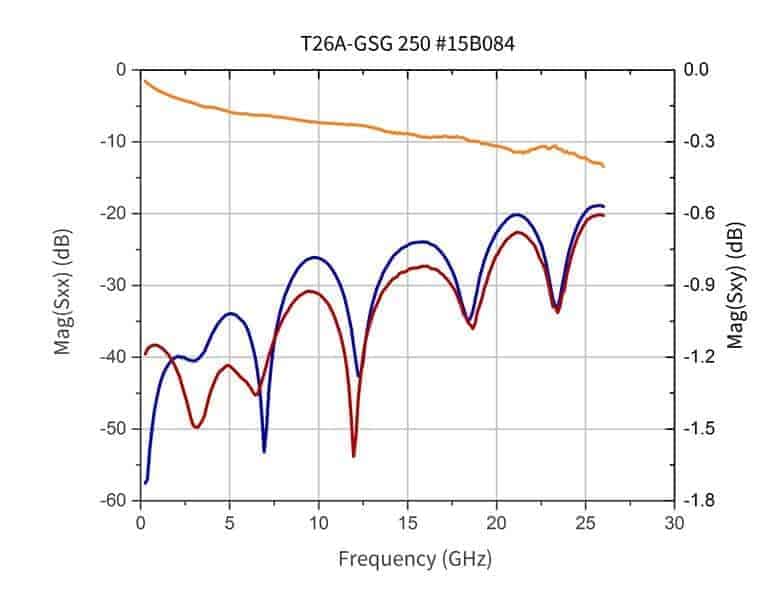

26 GHz Probe Model: T26

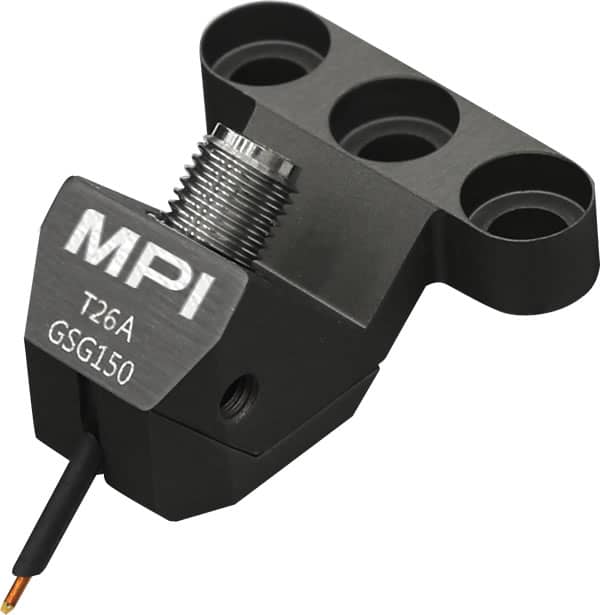

MPI TITAN™ Probe - T26A-GSG150

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

HP Probe Model: T26P

MPI TITAN™ Probe - T26P-GSG150

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

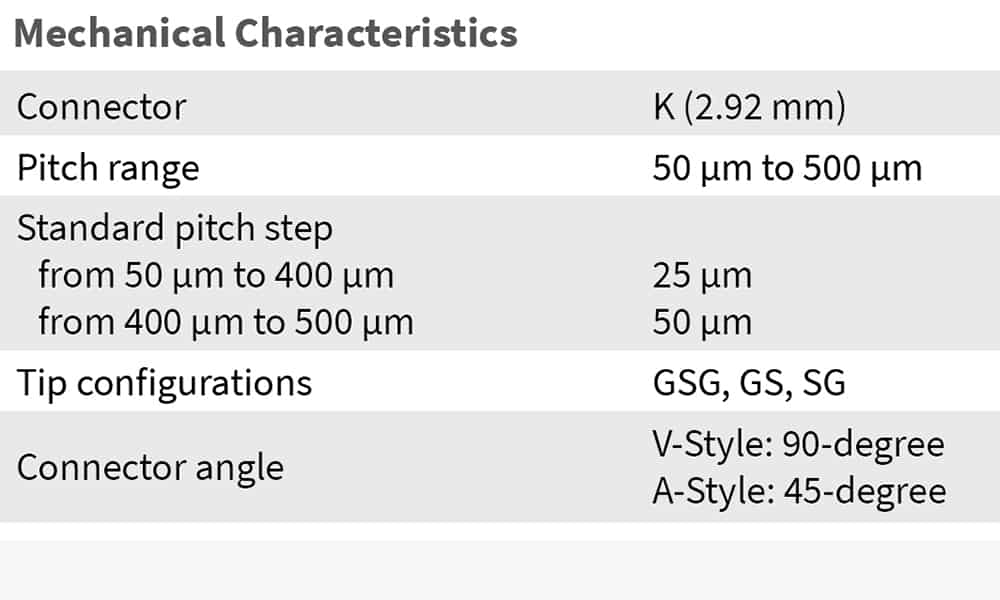

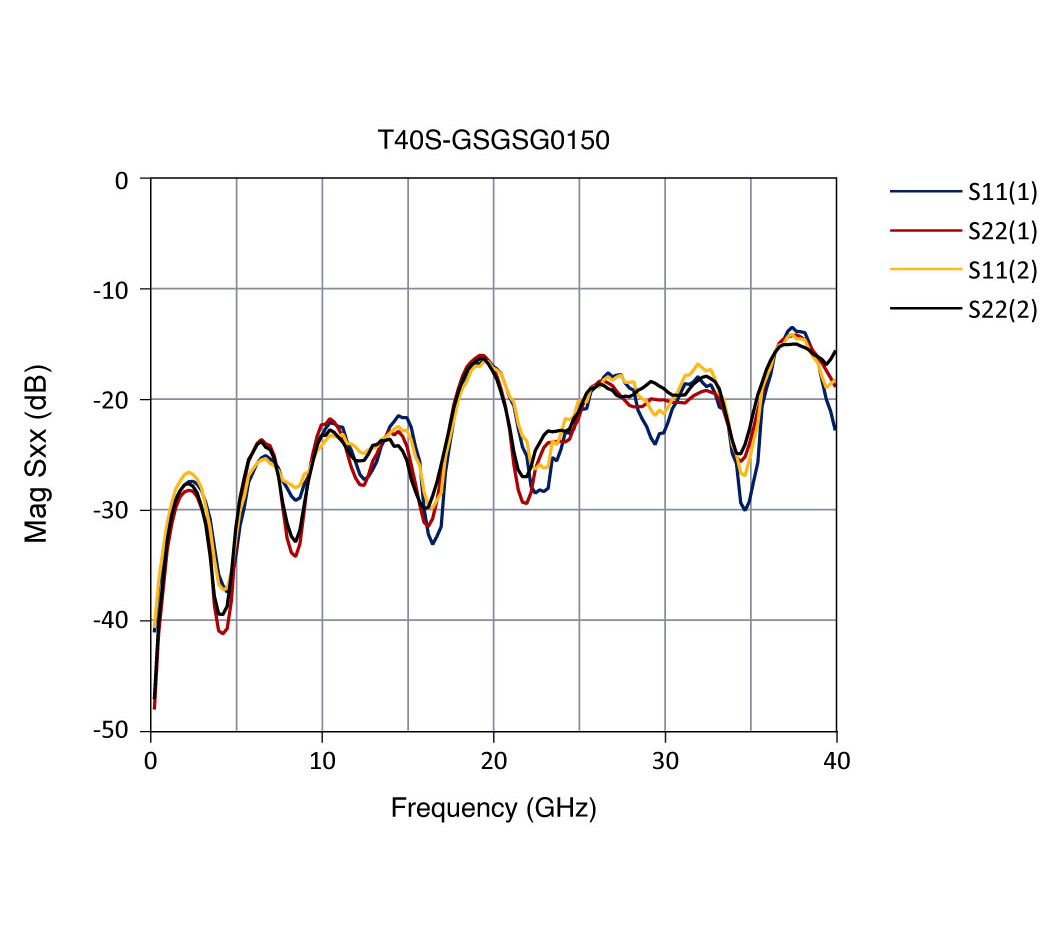

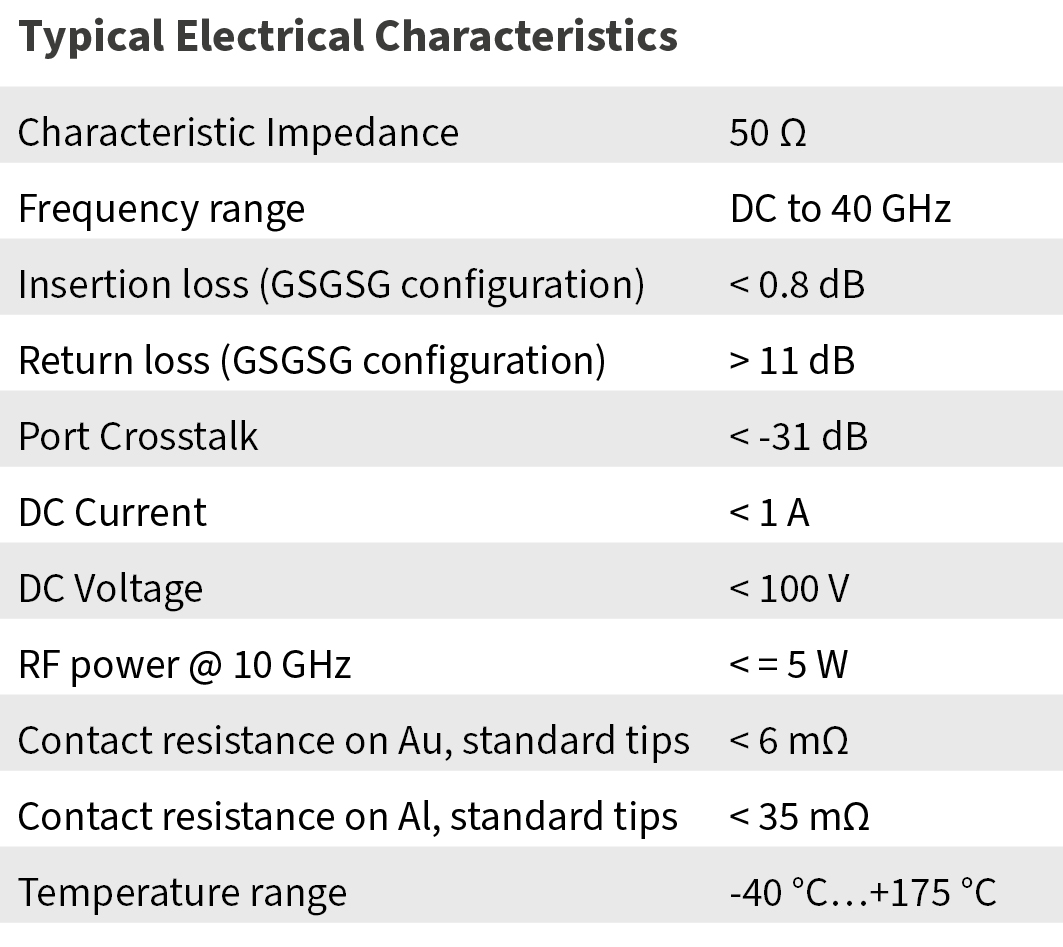

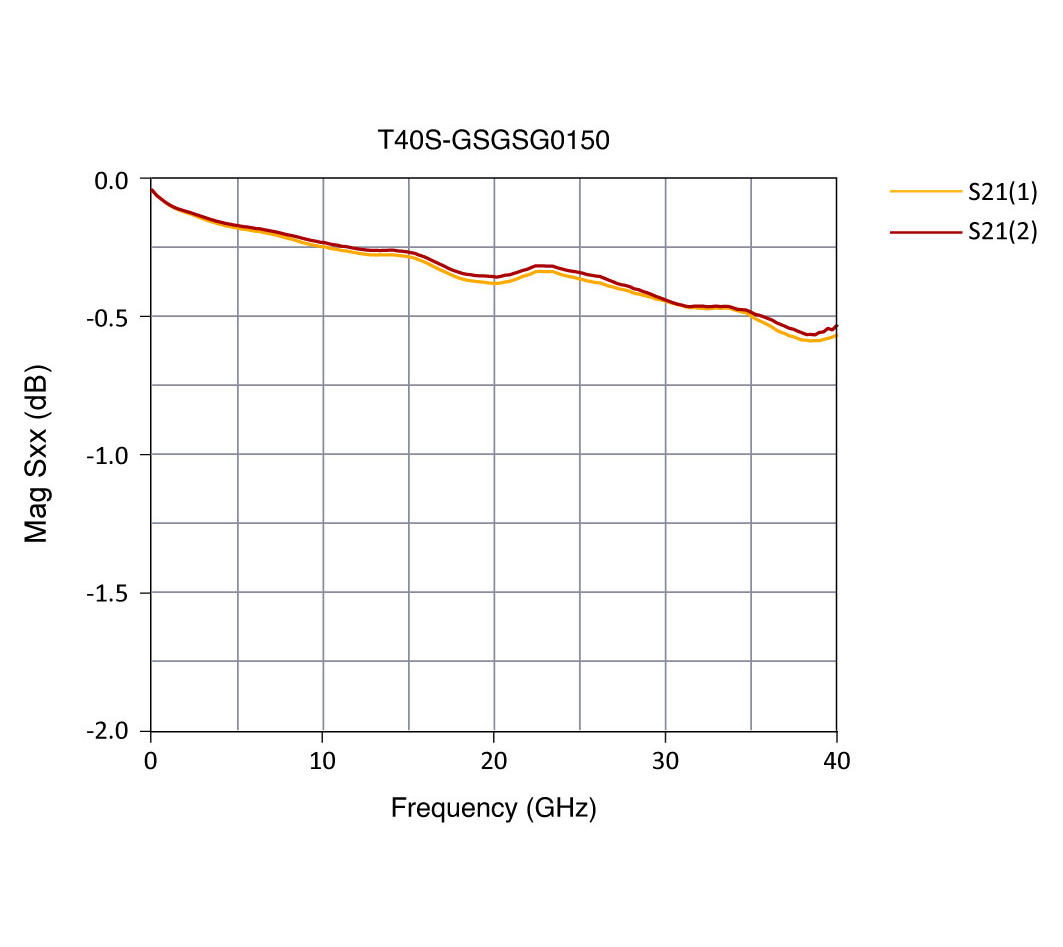

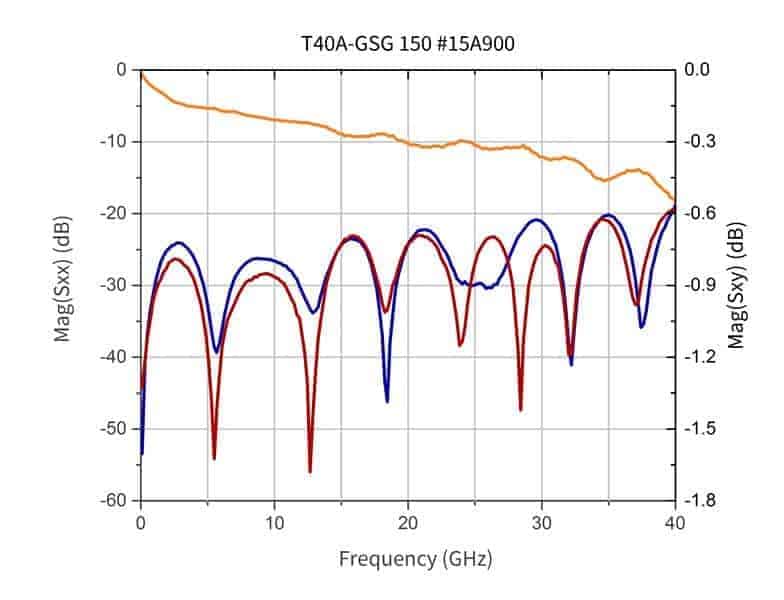

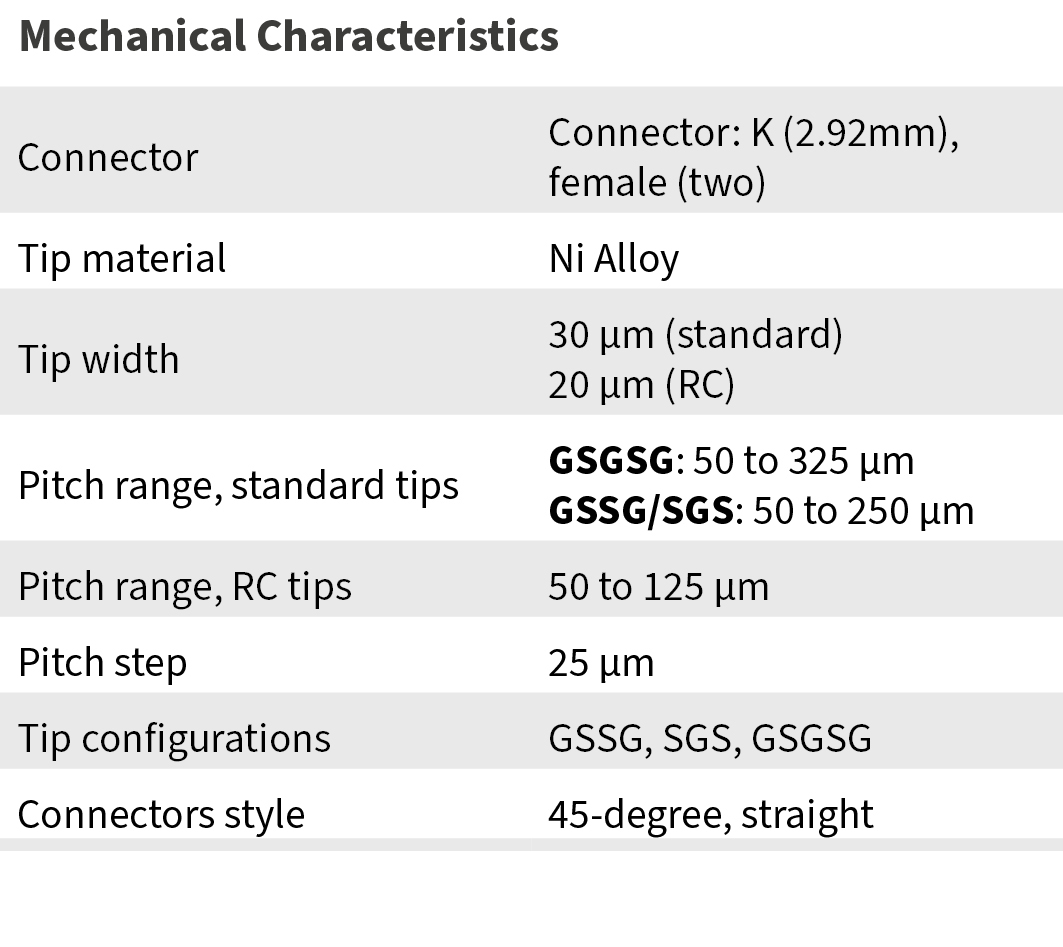

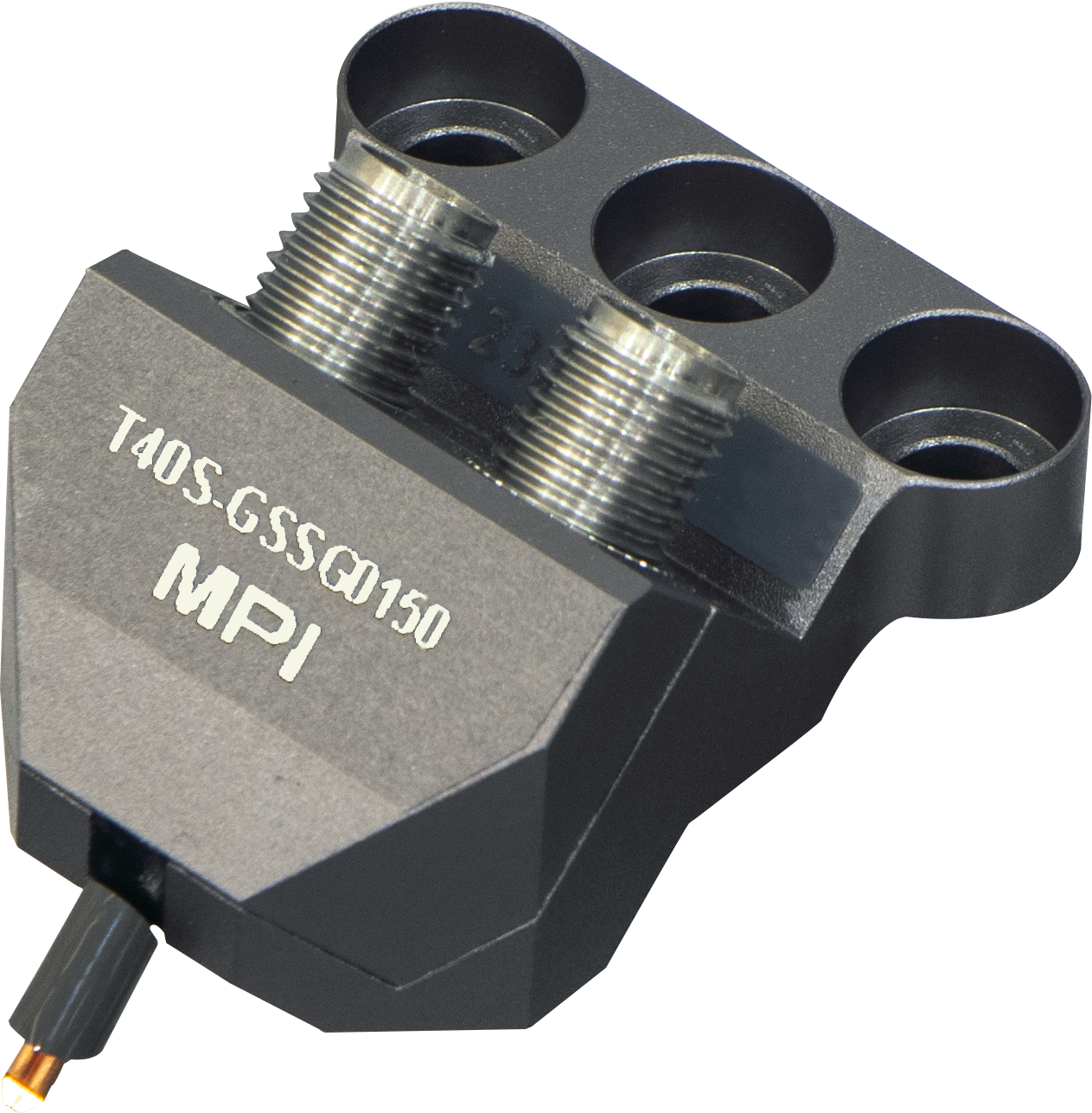

40 GHz Probe Model: T40

MPI TITAN™ Probe - T40A-GSG150

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

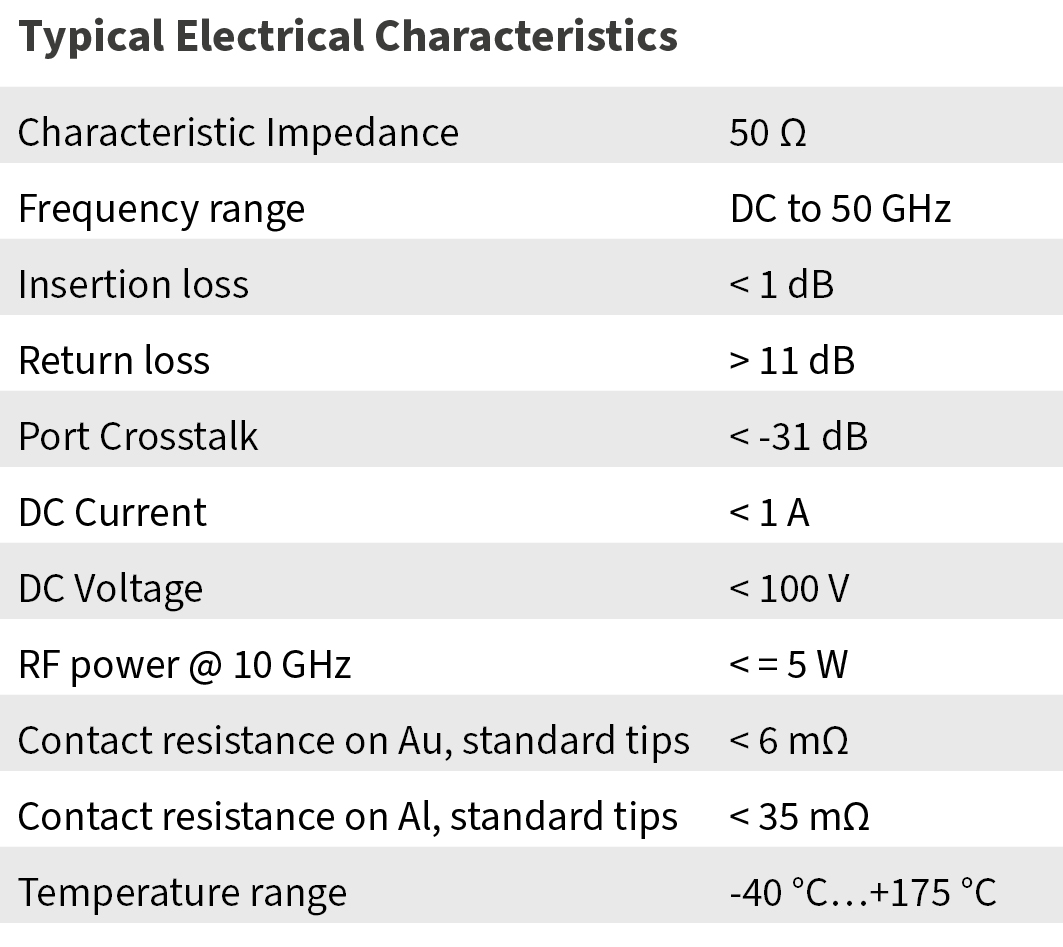

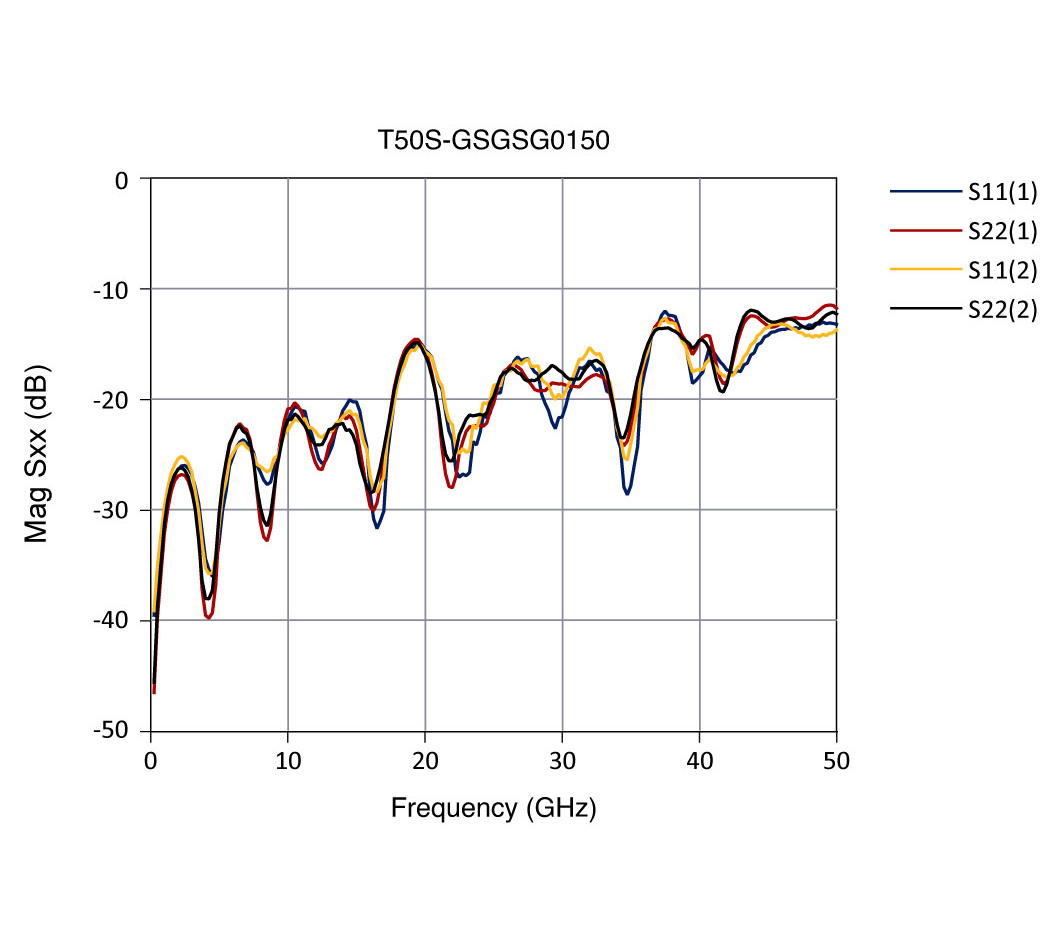

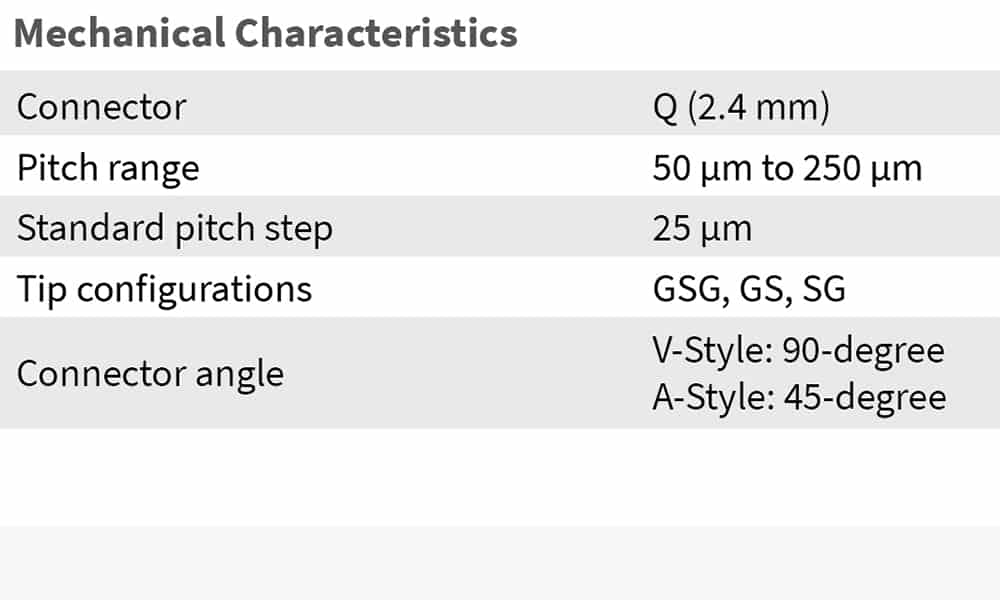

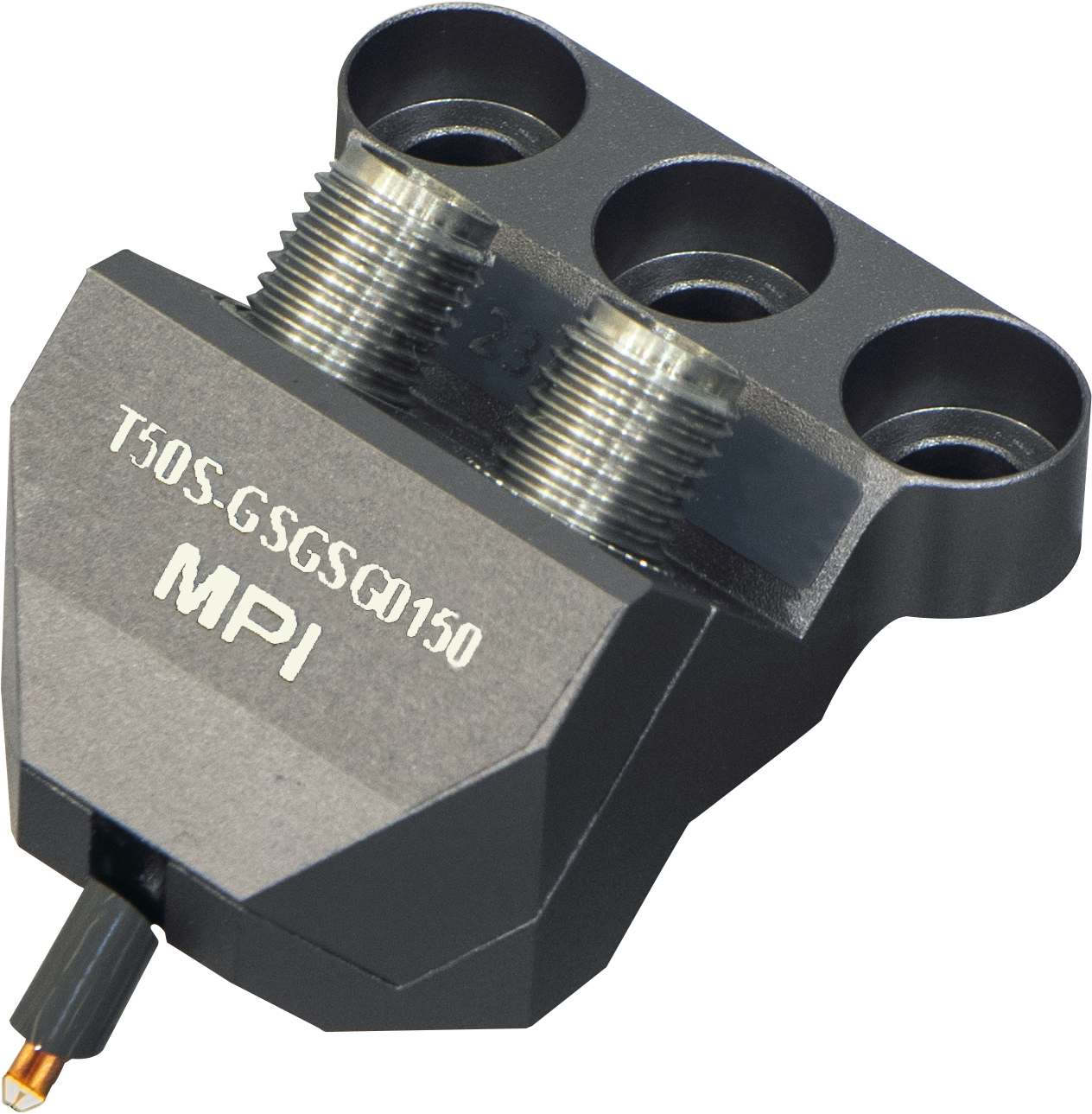

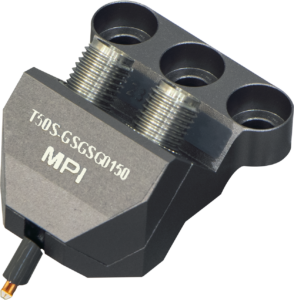

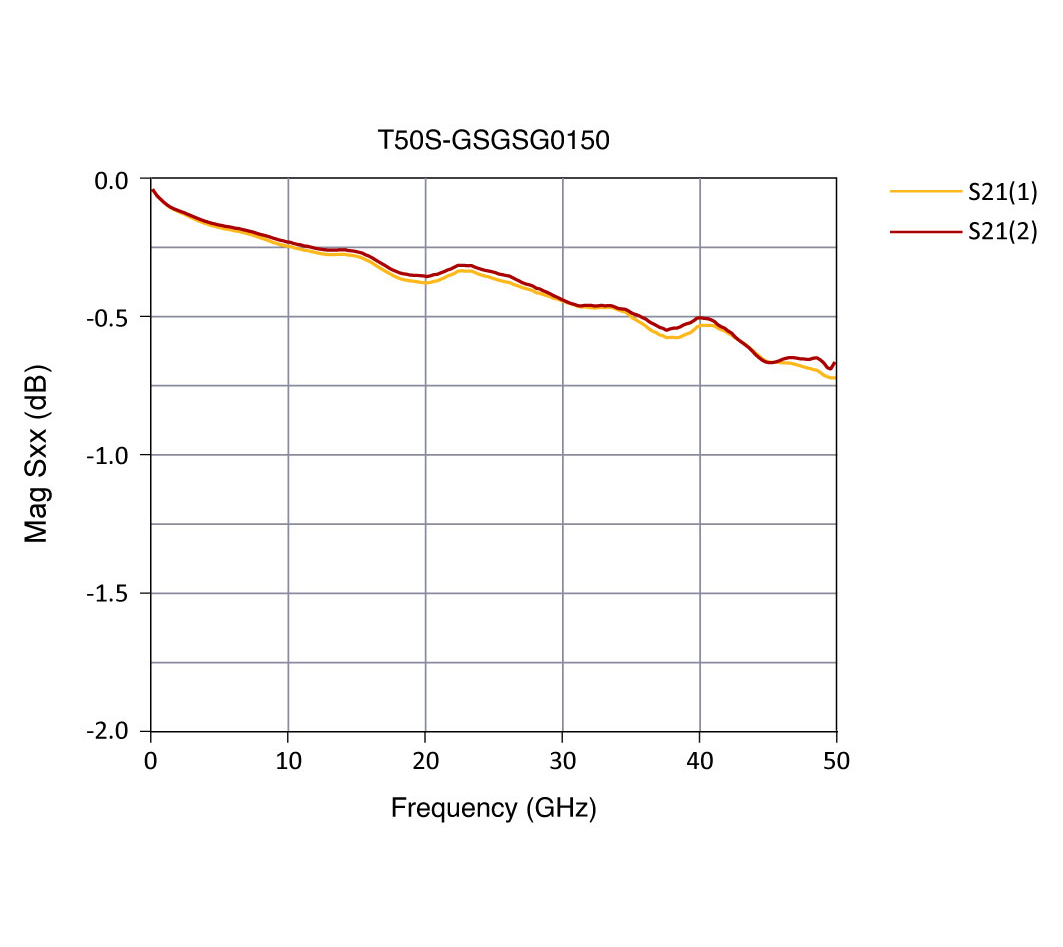

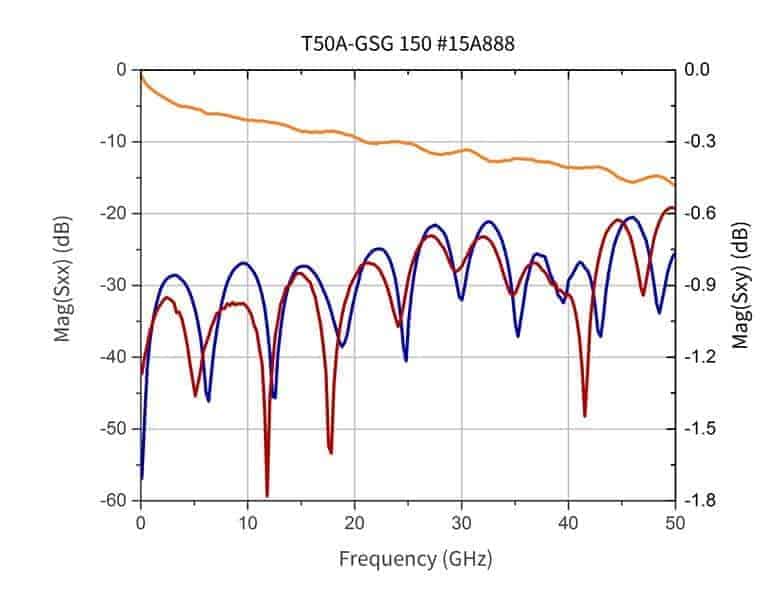

50 GHz Probe Model: T50

MPI TITAN™ Probe - T50A-GSG100

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

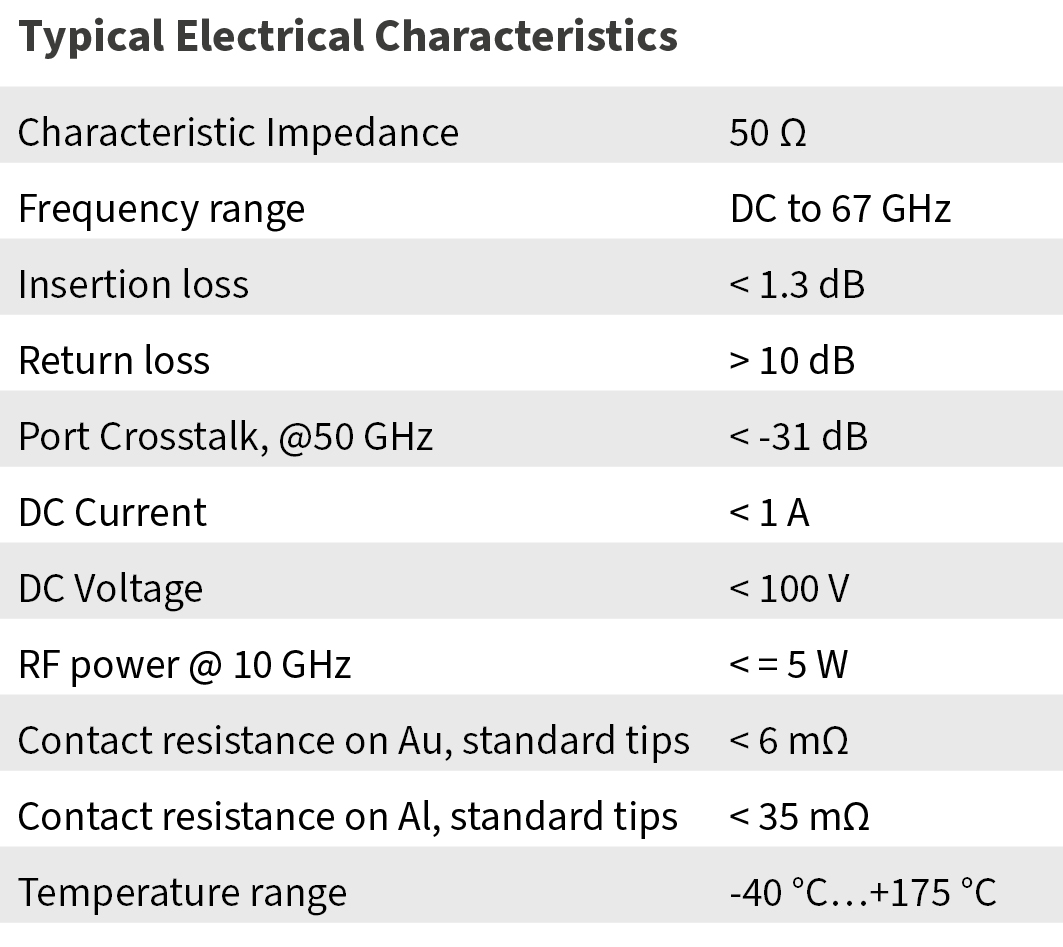

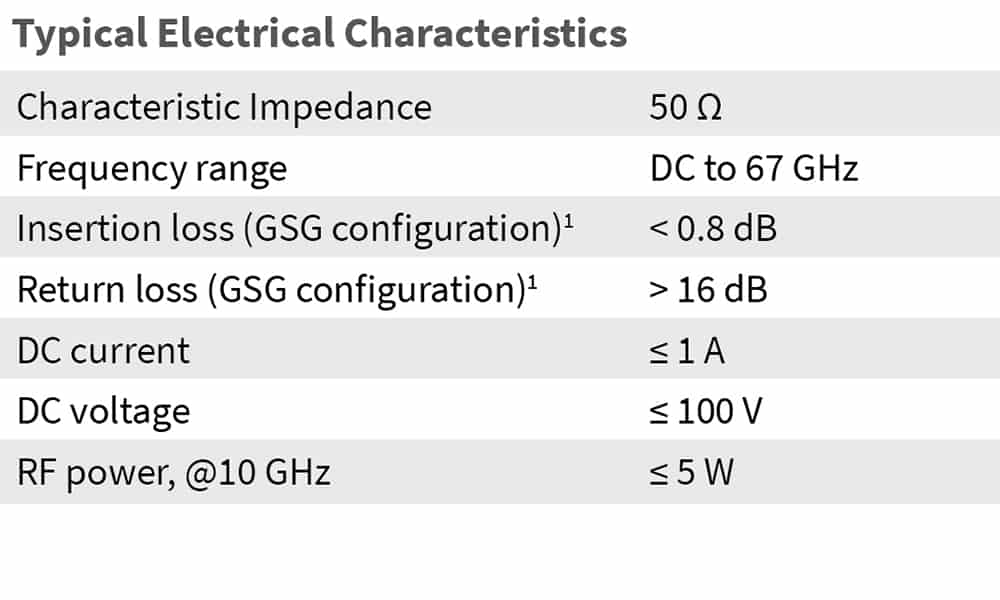

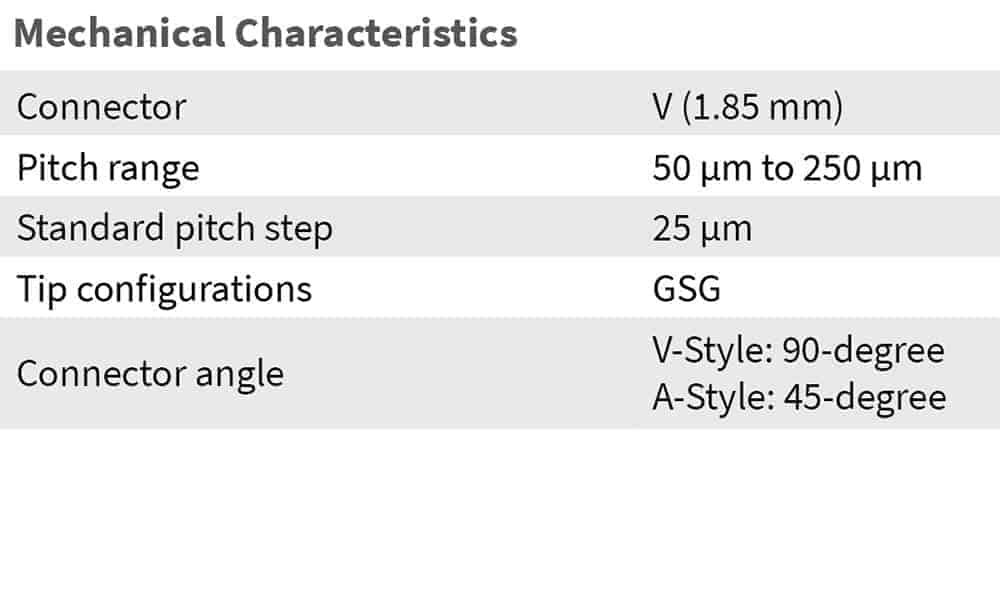

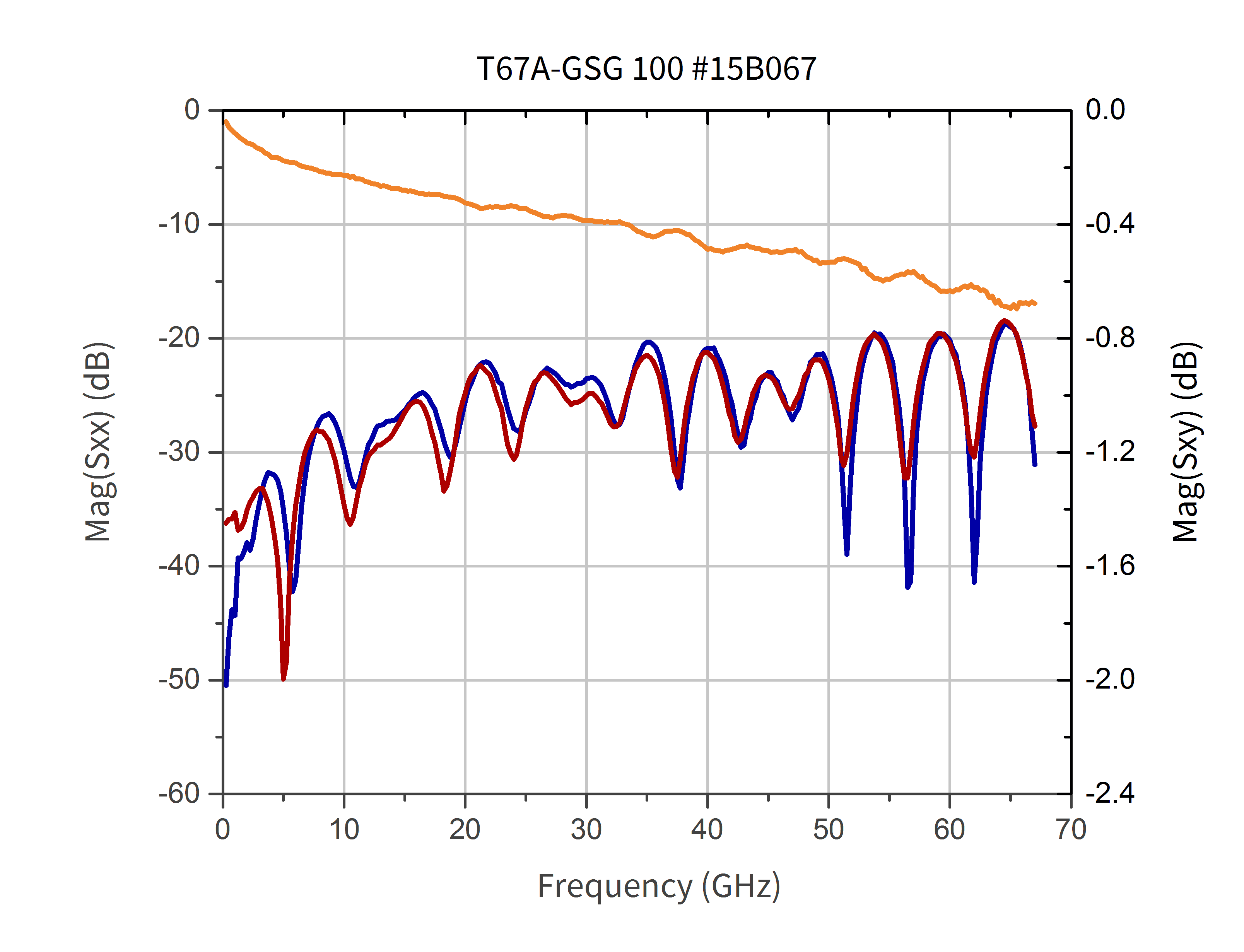

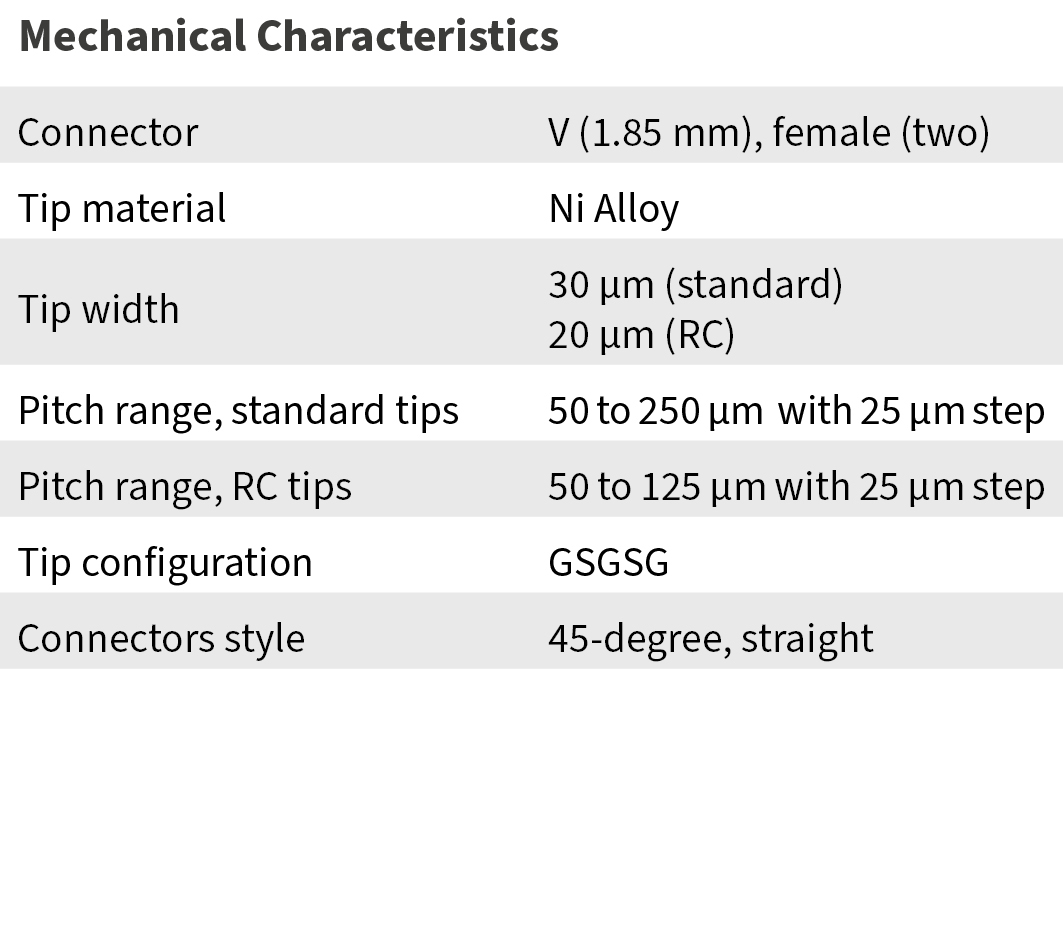

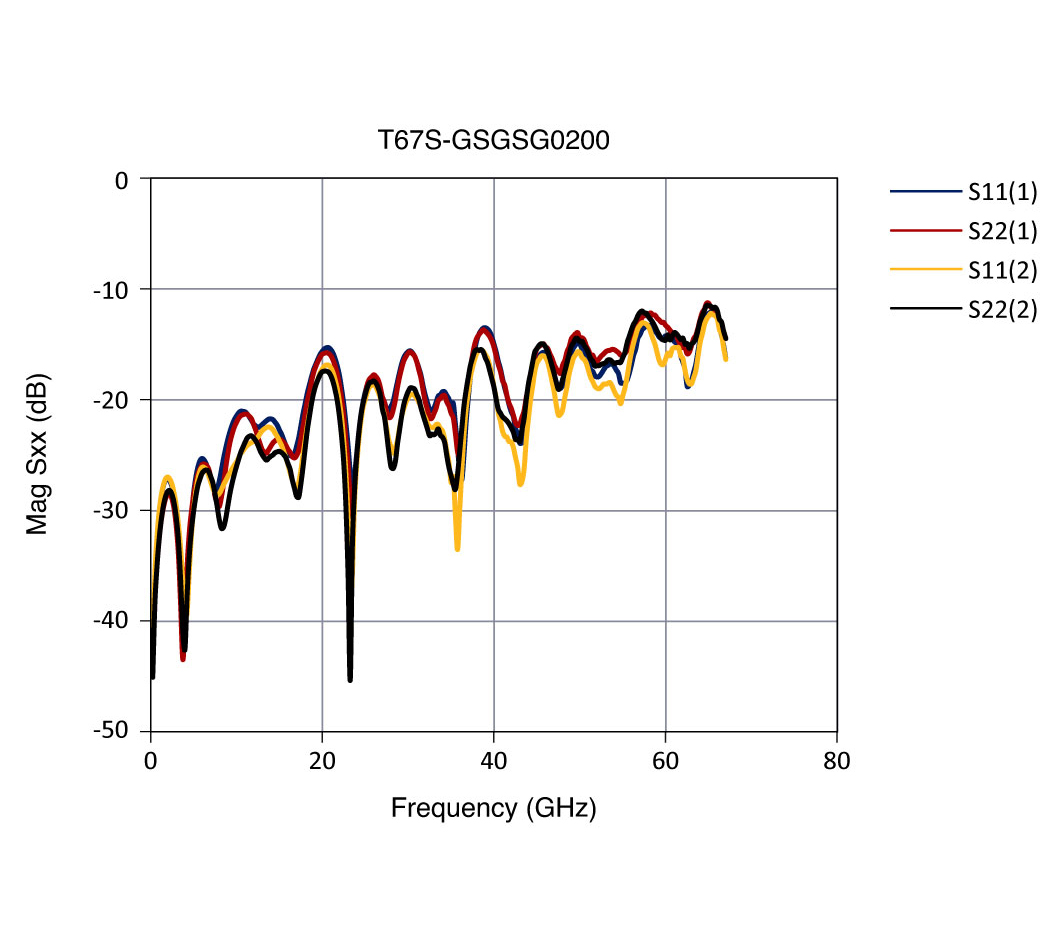

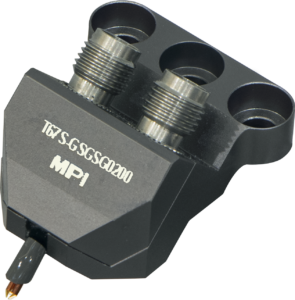

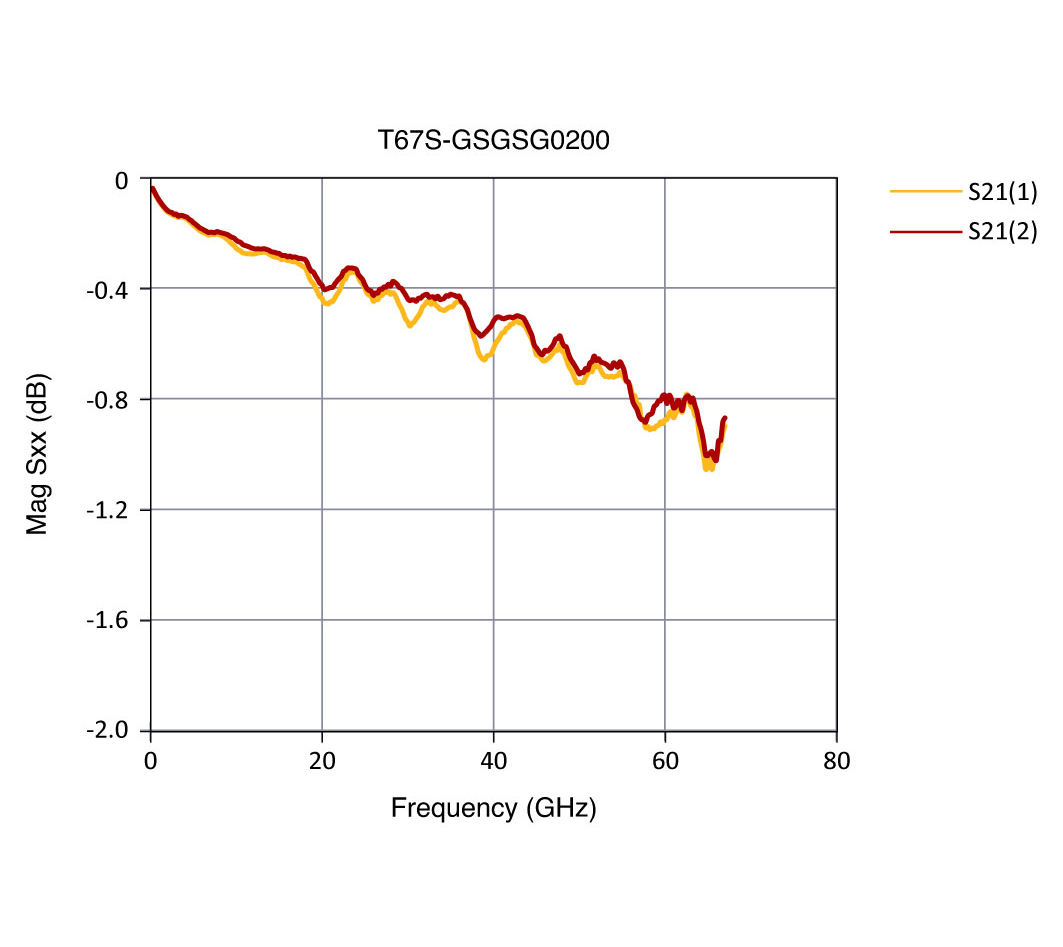

67 GHz Probe Model: T67

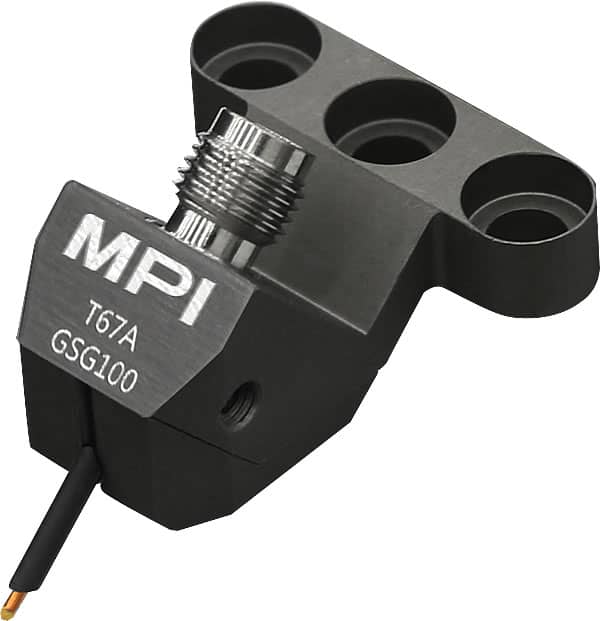

MPI TITAN™ Probe - T67A-GSG100

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

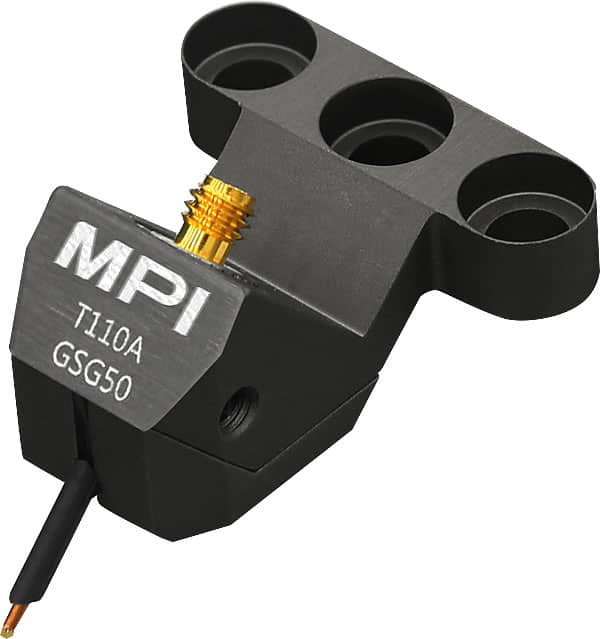

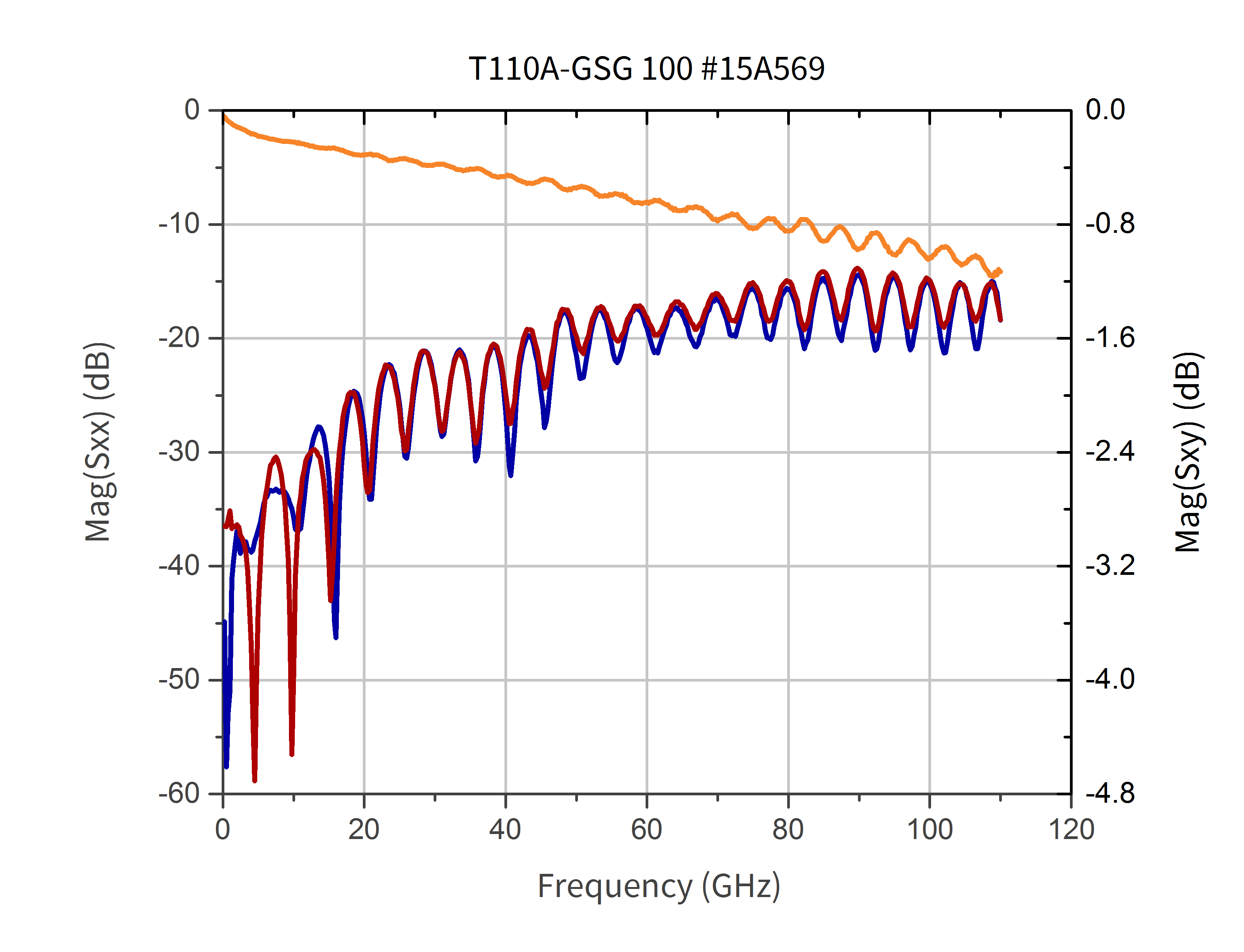

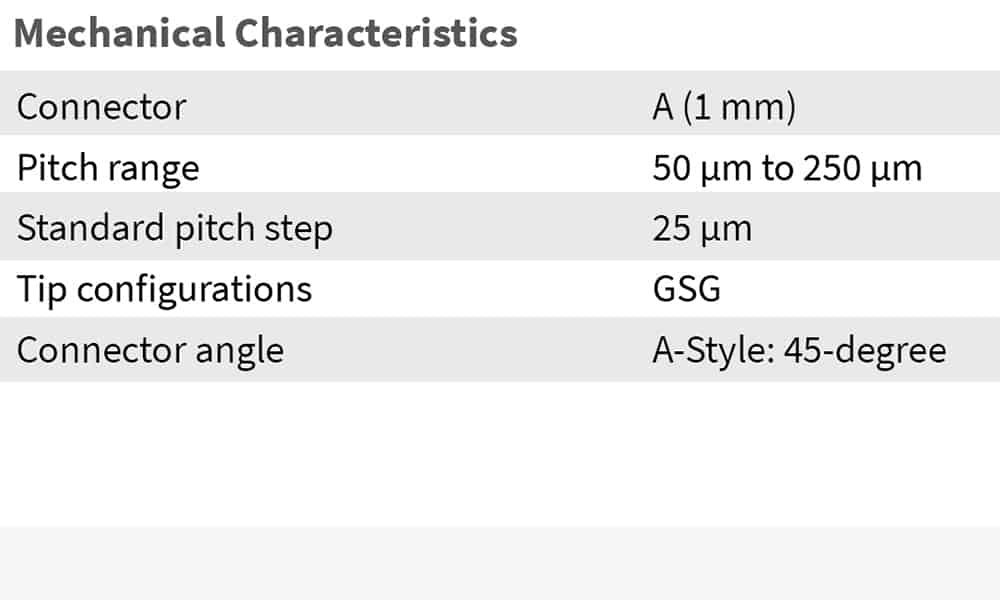

110 GHz Probe Model: T110

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

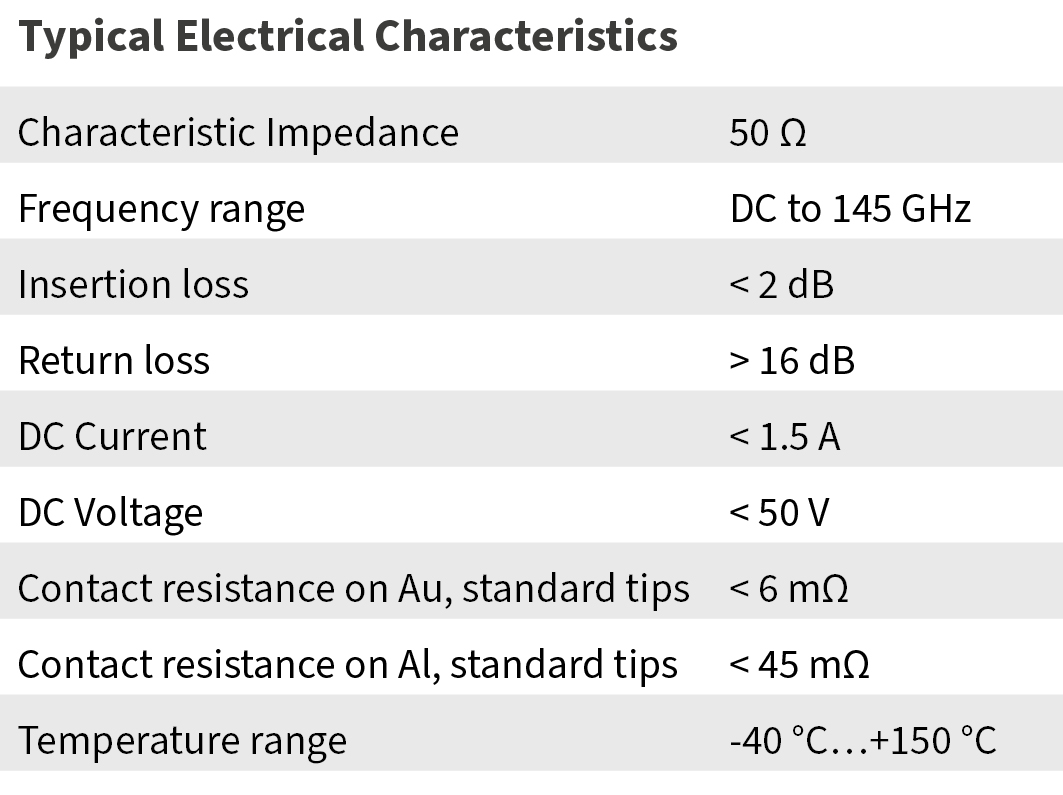

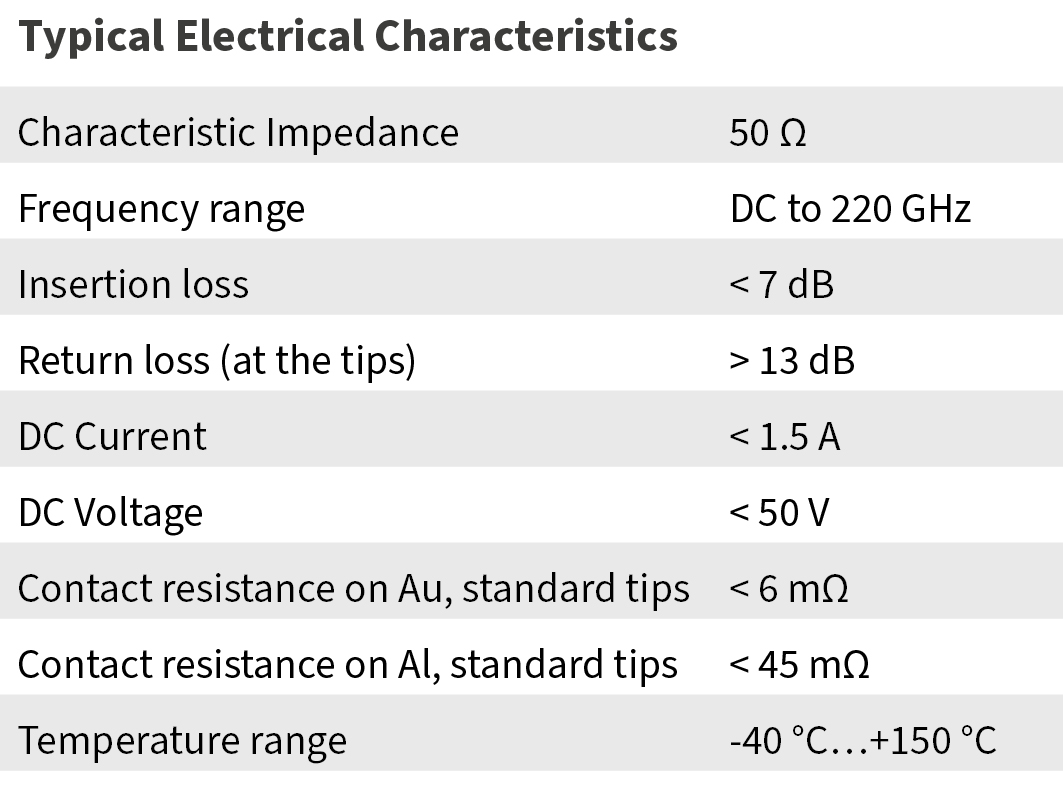

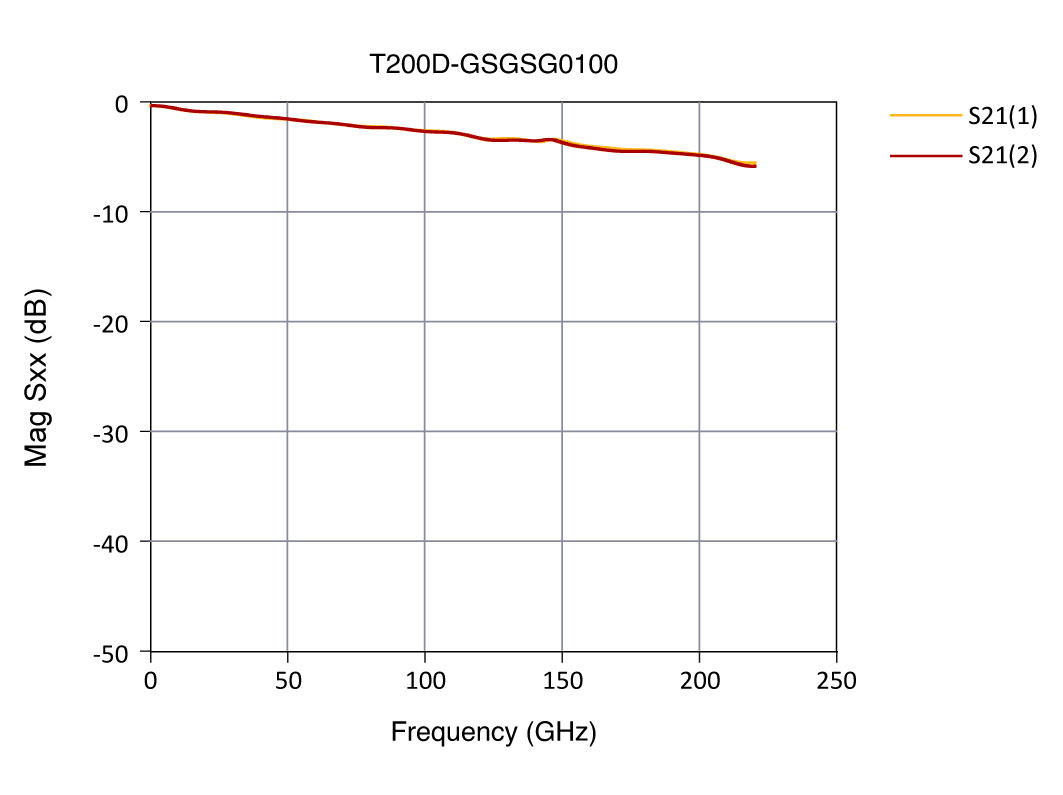

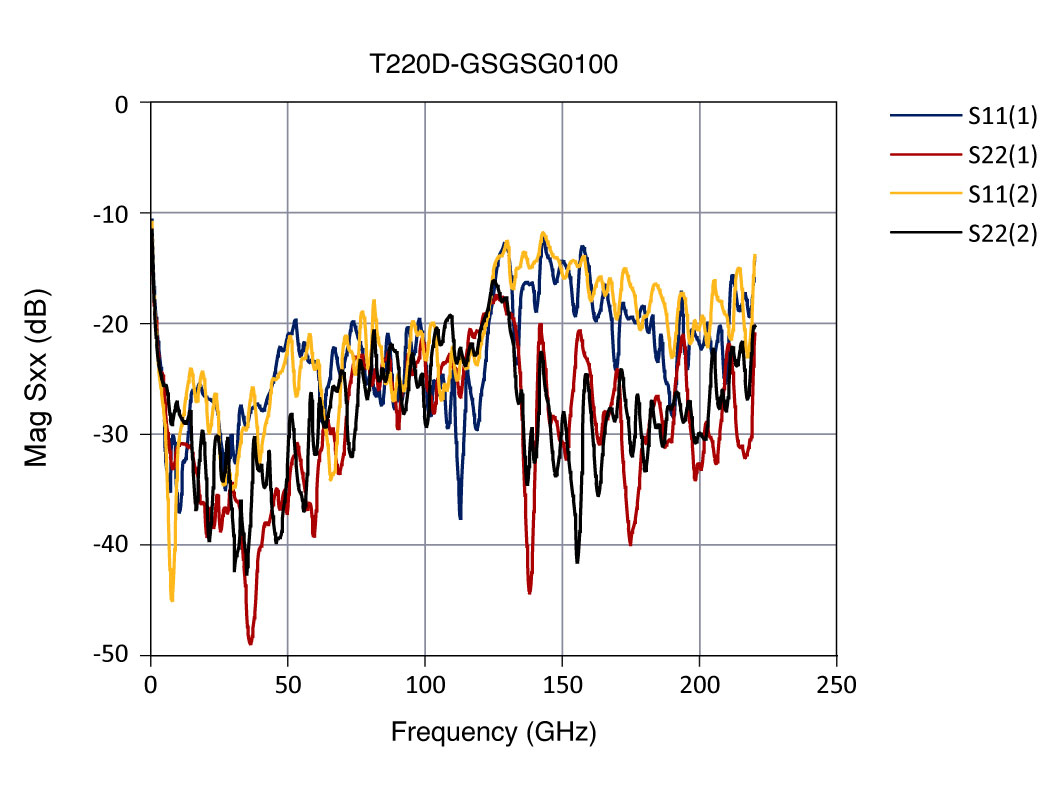

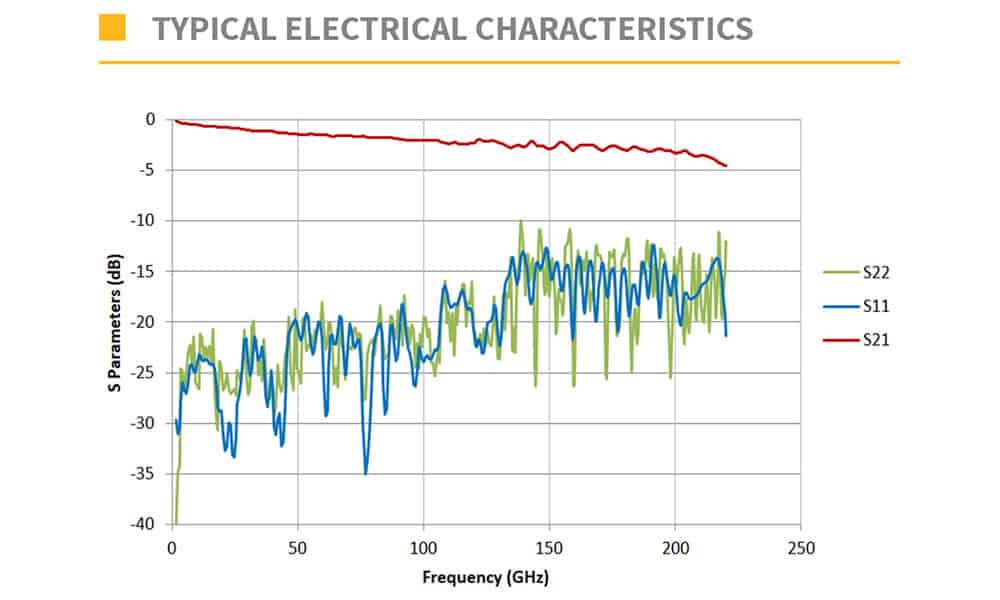

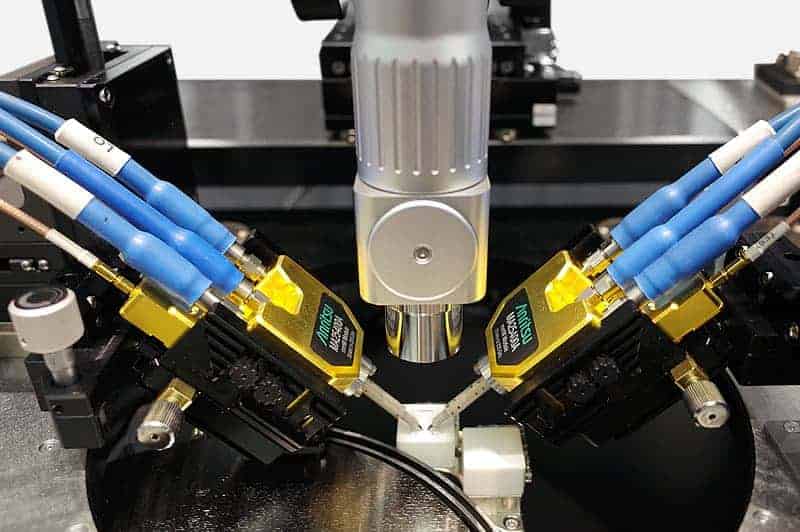

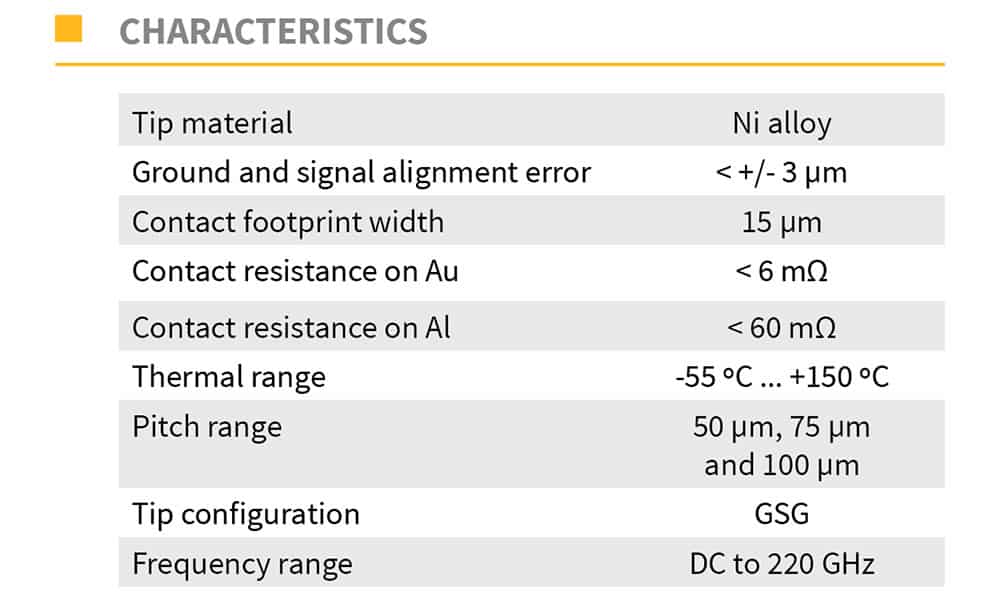

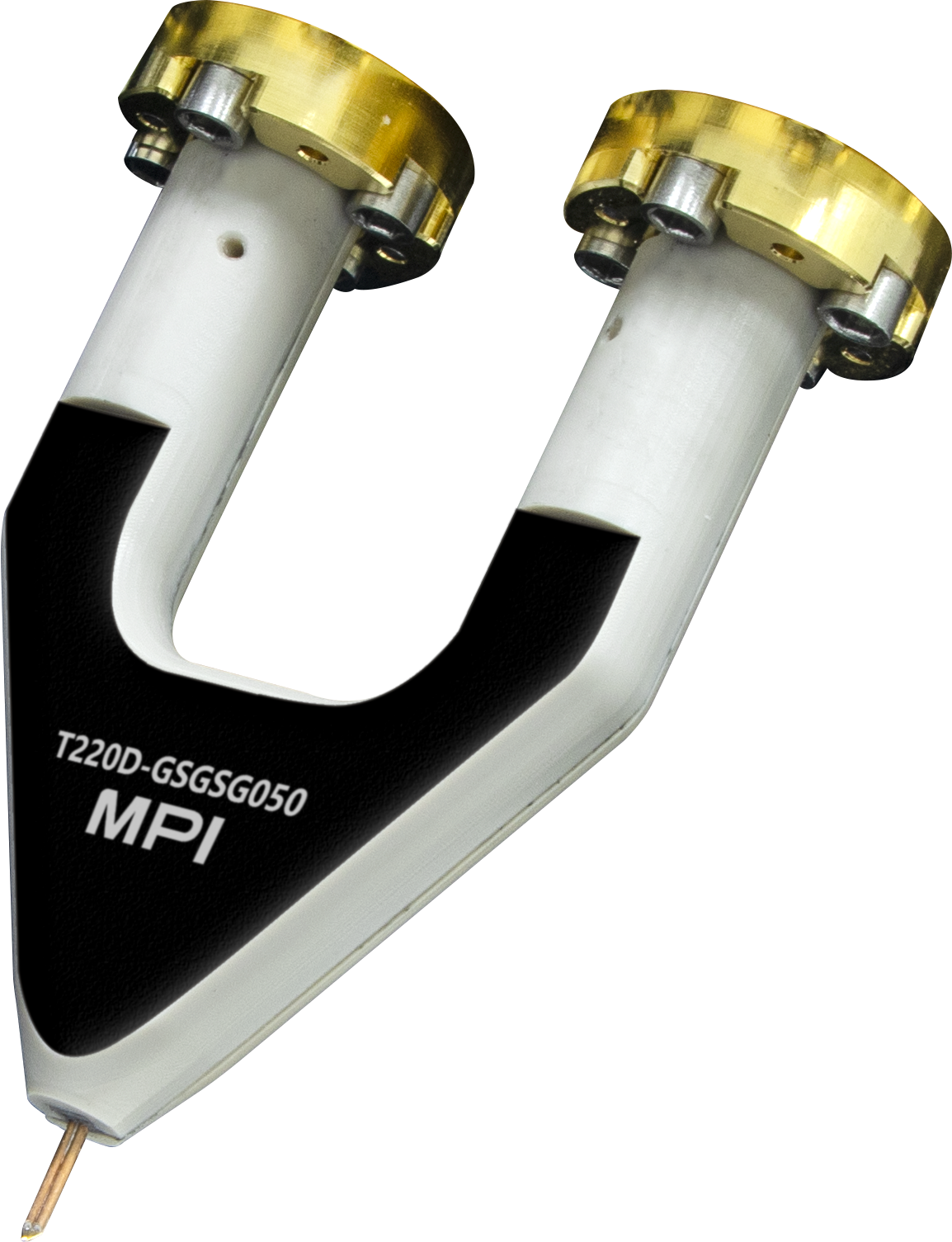

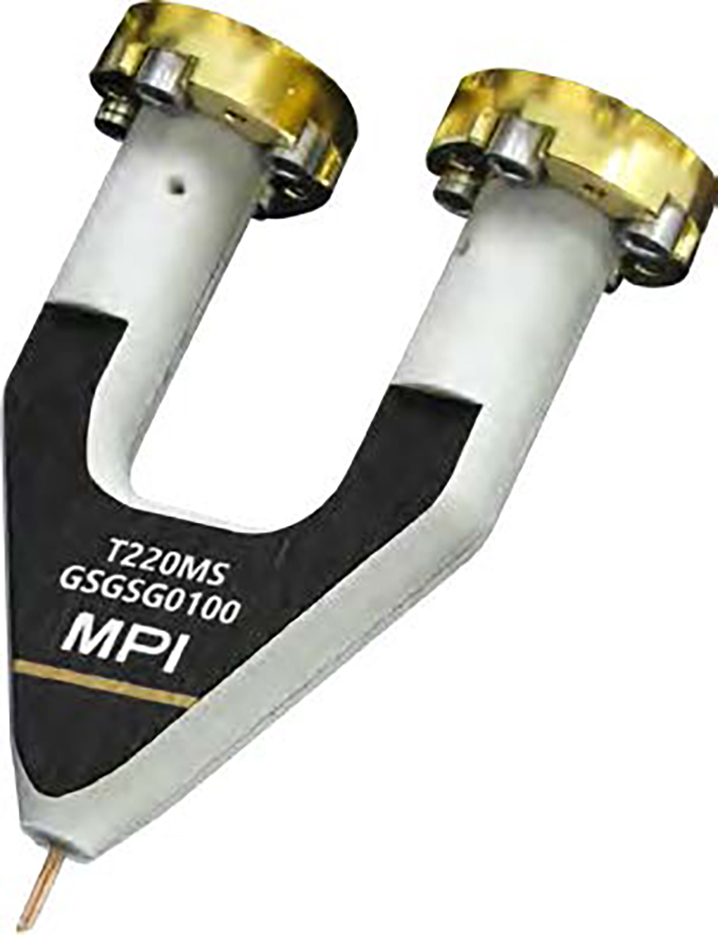

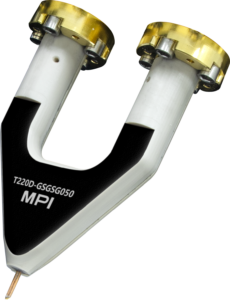

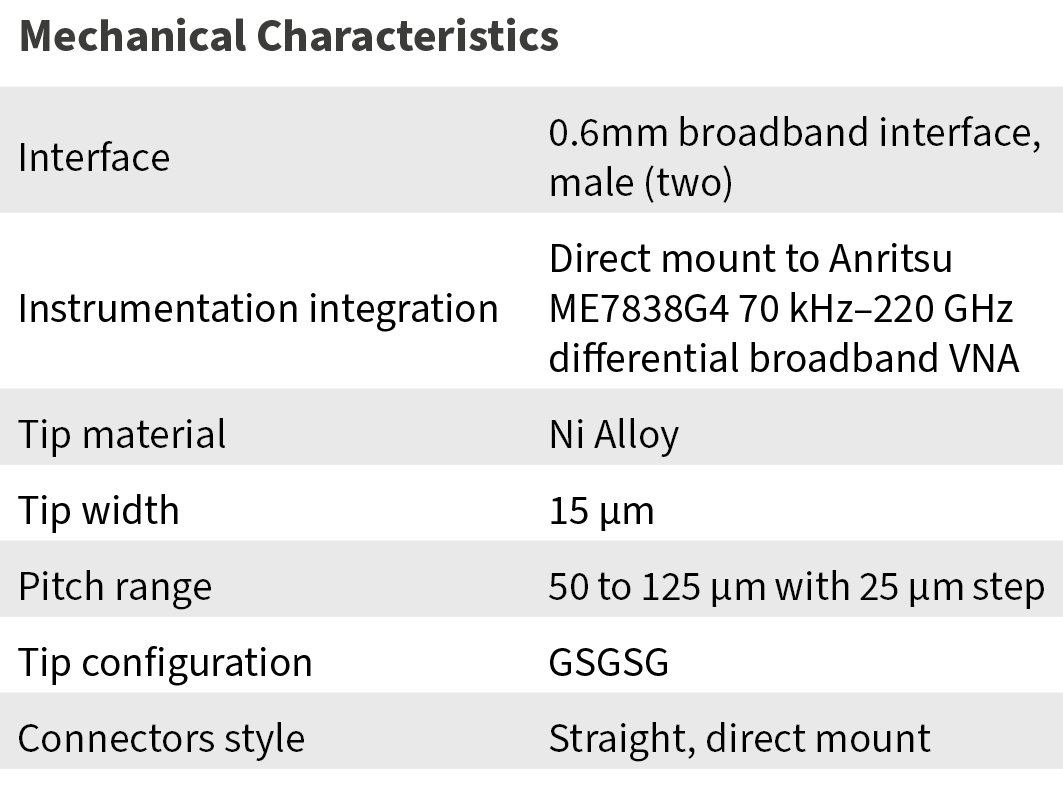

MPI TITAN™ DC-220 GHz Probe

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider

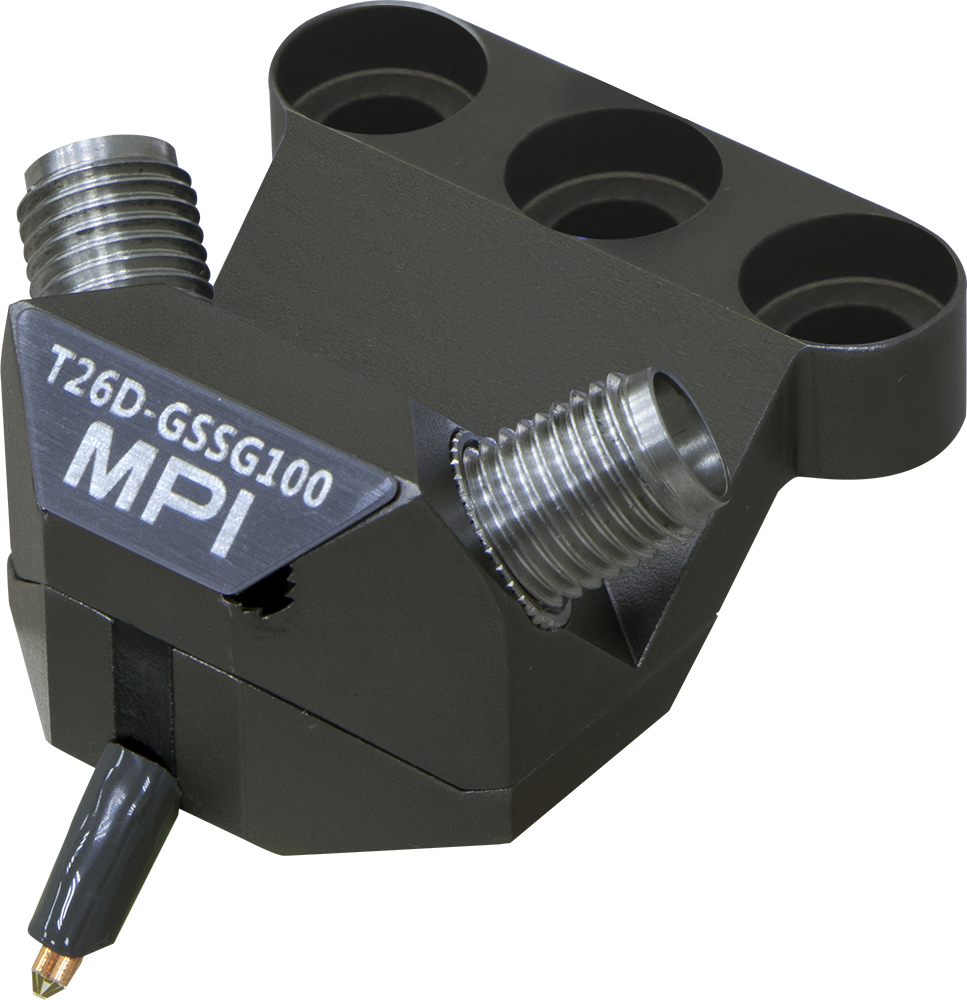

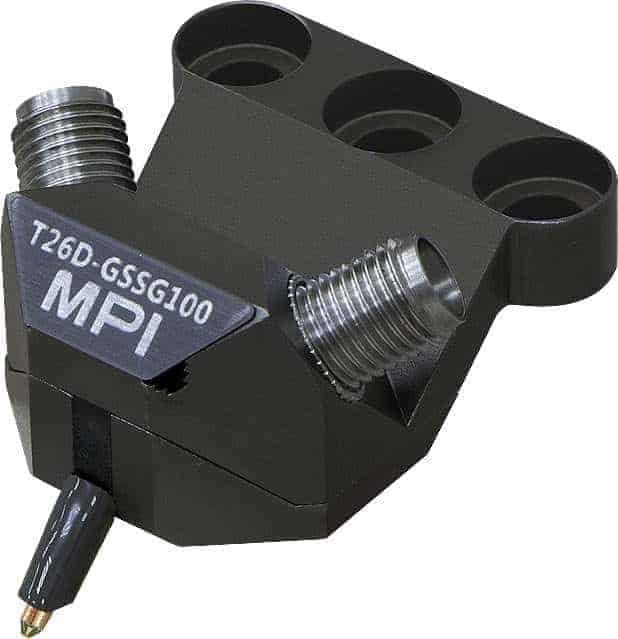

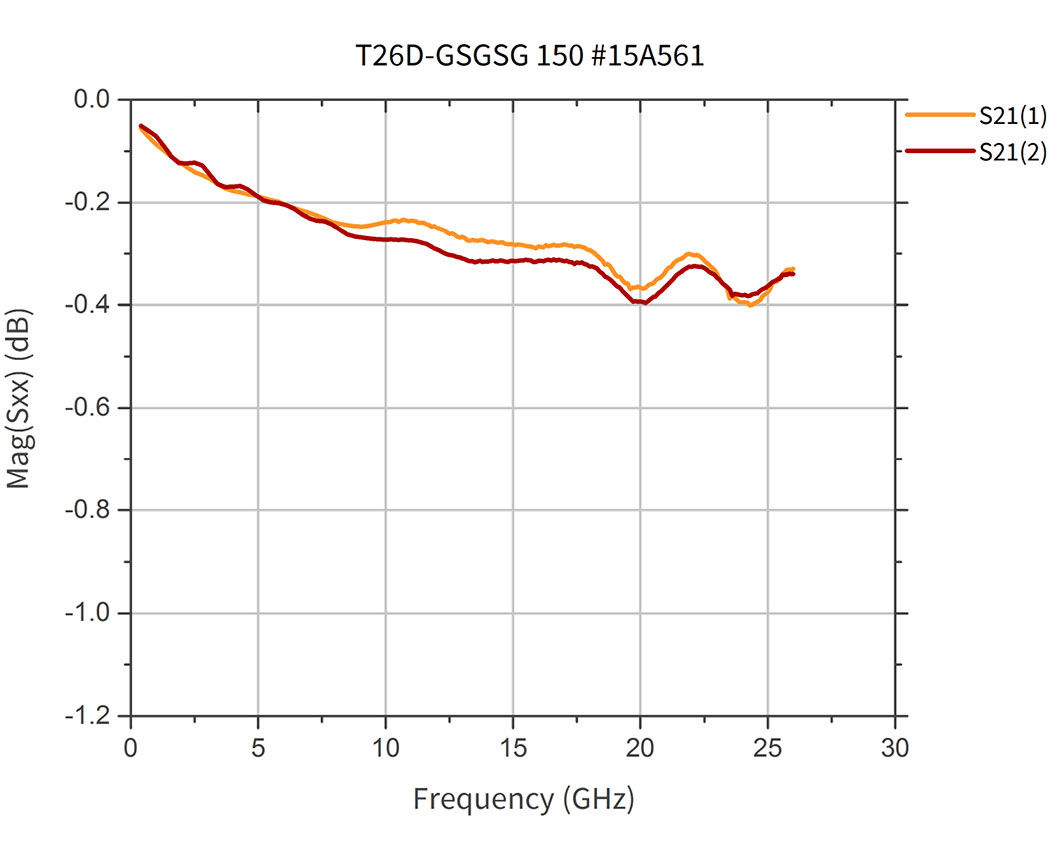

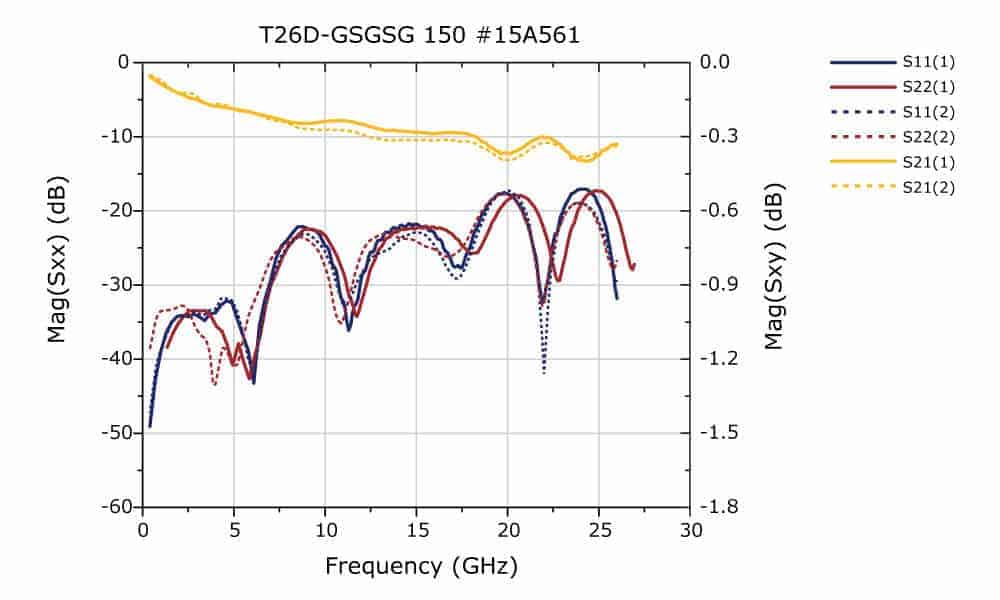

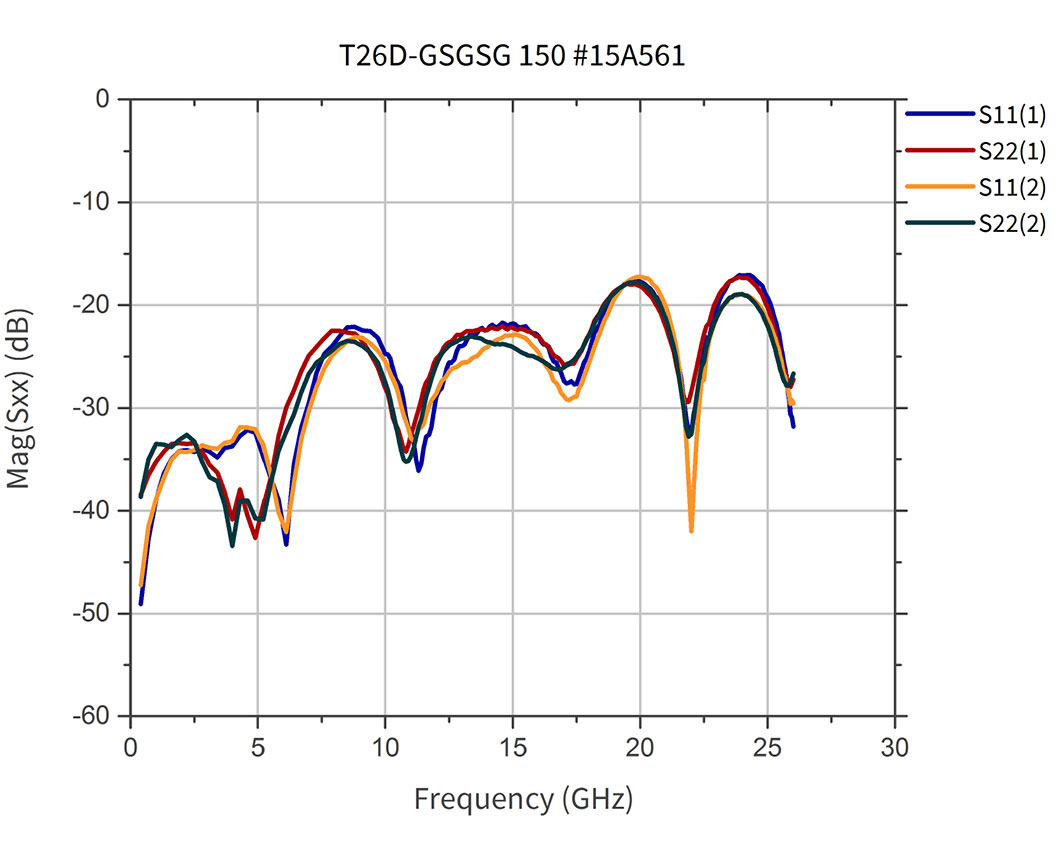

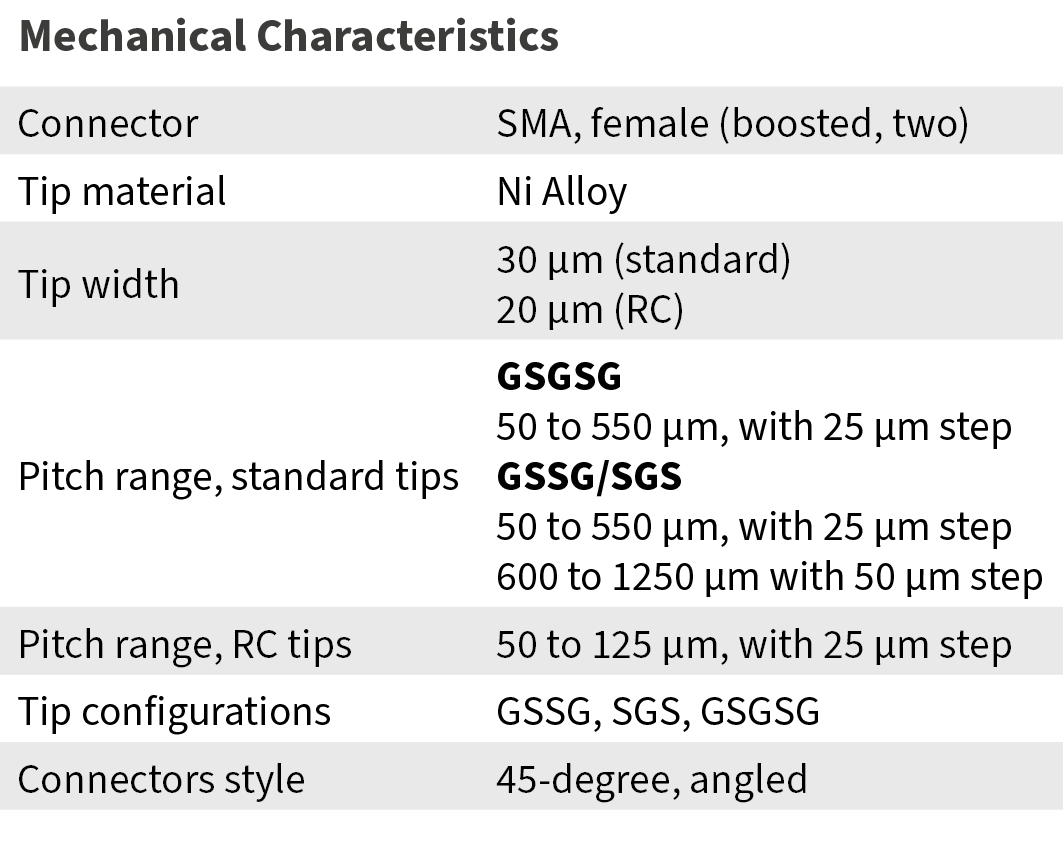

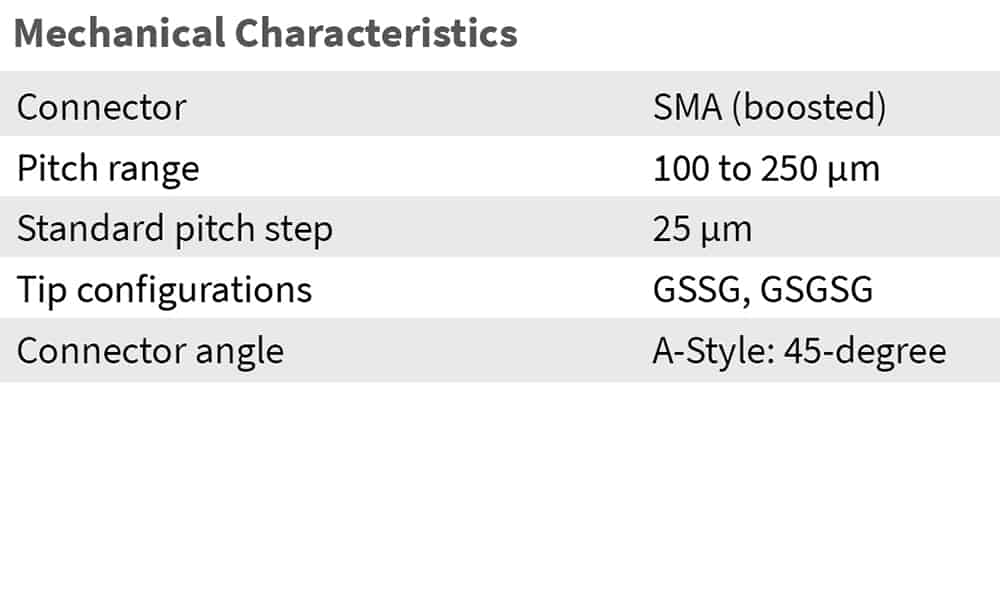

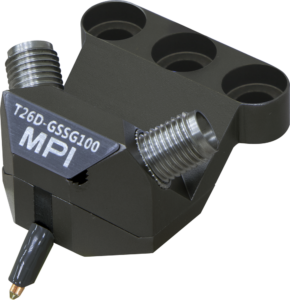

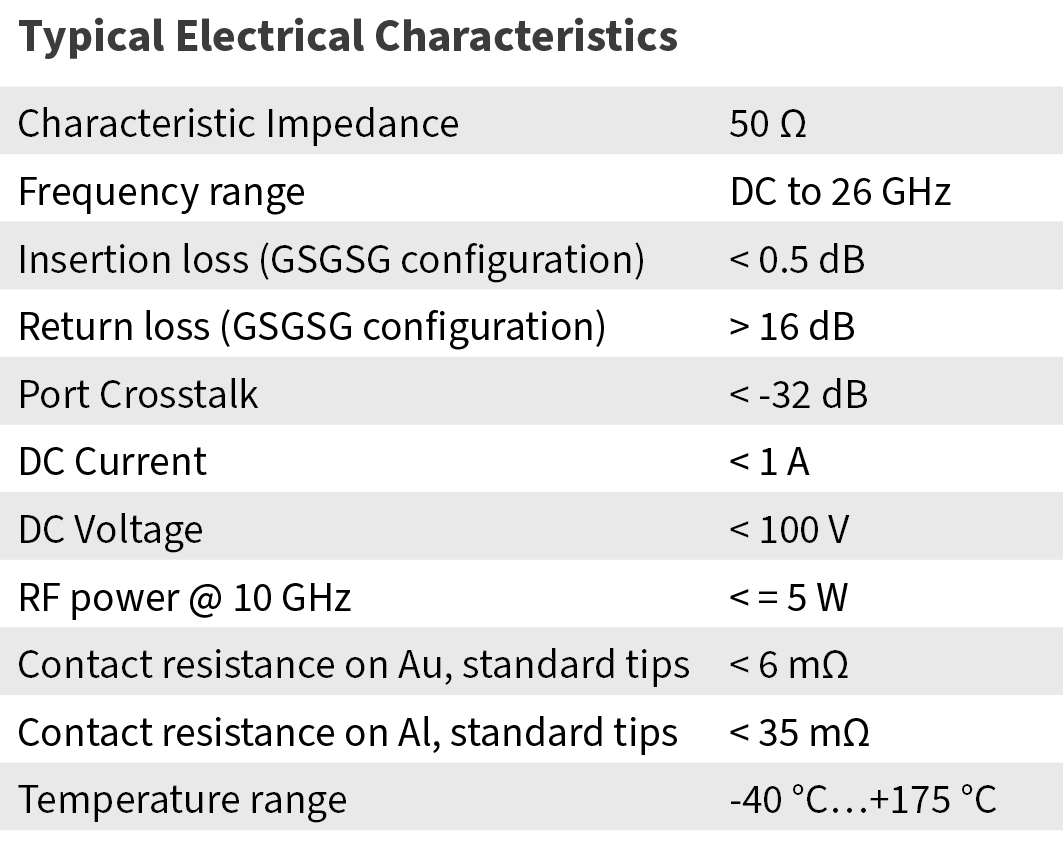

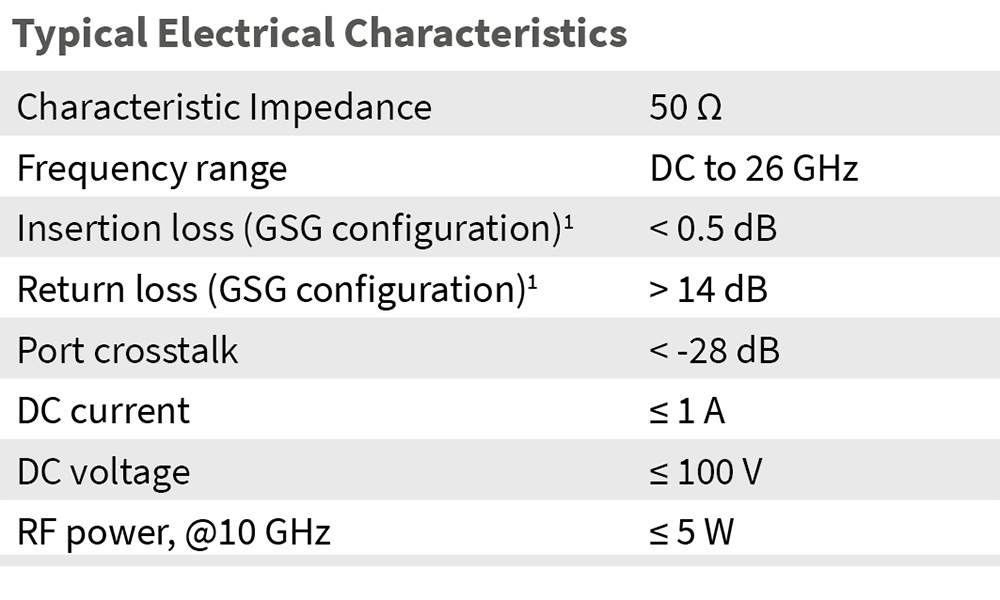

26 GHz Probe Model: T26D

TS150 TS200 TS300 Optic Tilting
TS150 TS200 TS300 Optic Ttilting
TS150 TS200 TS300 Optic Ttilting
previous arrow
next arrow
Slider
